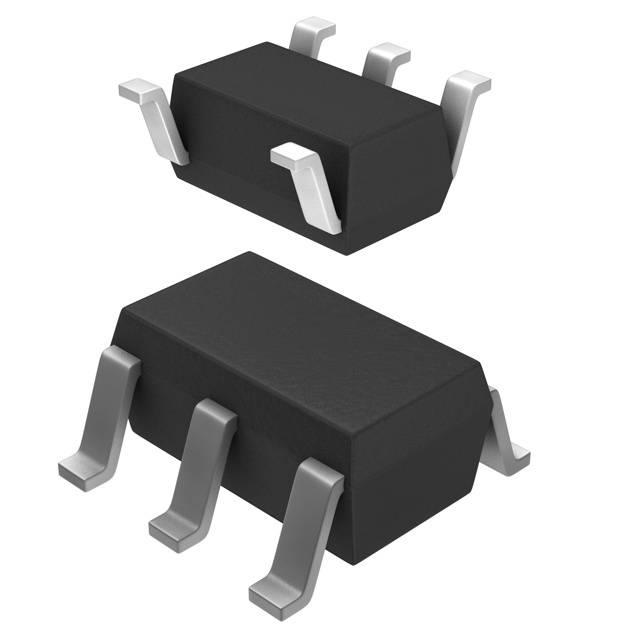

DIODES INC. 74AHCT1G126W5-7 逻辑芯片, 缓冲器, 单路, 三态输出, SOT25
缓冲器,非反向 元件 1 位每元件 三态 Output SOT-25
得捷:
IC BUFFER NON-INVERT 5.5V SOT25
立创商城:
74AHCT1G126W5-7
艾睿:
Amplify analog and digital signals by driving the input to the transmission line with this 74AHCT1G126W5-7 buffer and line driver from Diodes Zetex. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 1 channels per chip.
安富利:
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-25 T/R
Chip1Stop:
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-25 T/R
TME:
IC: digital; buffer; Channels:1; Inputs:2; SMD; SOT25; Series: AHCT
Verical:
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-25 T/R
DeviceMart:
IC BUS/BUFF 3ST SGL N-INV SOT25
电源电压DC 4.50V min
输出接口数 1
通道数 1
输入数 1
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 5
封装 SOT-25
封装 SOT-25
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
