74AHCT1G86W5-7概述
DIODES INC. 74AHCT1G86W5-7 逻辑芯片, 异或门, 单路, 2输入, SOT25
Build any logic circuits you can think of with this logic gate by Zetex. This gate has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
74AHCT1G86W5-7中文资料参数规格
技术参数
电源电压DC 4.50V min
输出接口数 1
输出电流 8 mA
电路数 1
输入数 2
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
封装参数
安装方式 Surface Mount
引脚数 5
封装 SOT-25
外形尺寸
封装 SOT-25
物理参数
工作温度 -40℃ ~ 125℃
其他
产品生命周期 Active
包装方式 Tape & Reel TR
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
海关信息
ECCN代码 EAR99

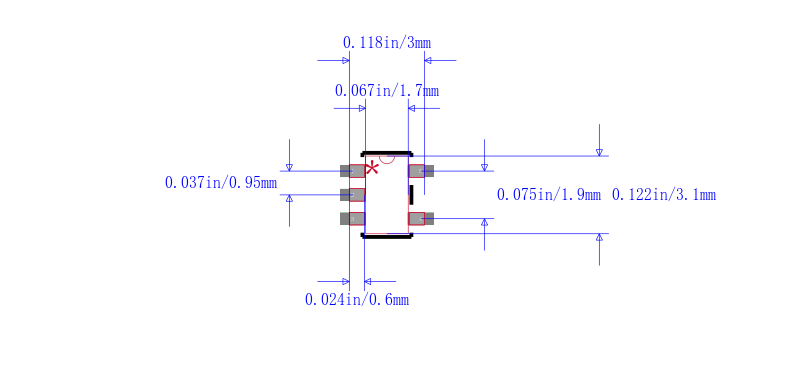

74AHCT1G86W5-7引脚图与封装图
