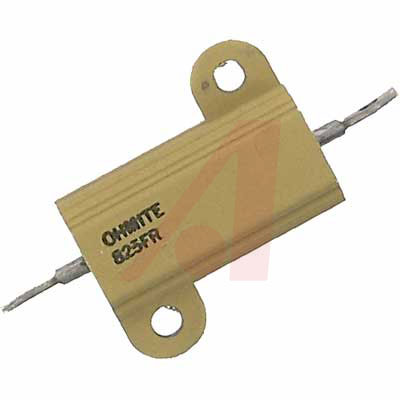

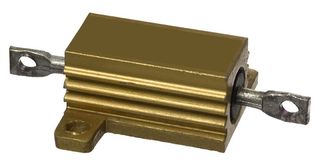

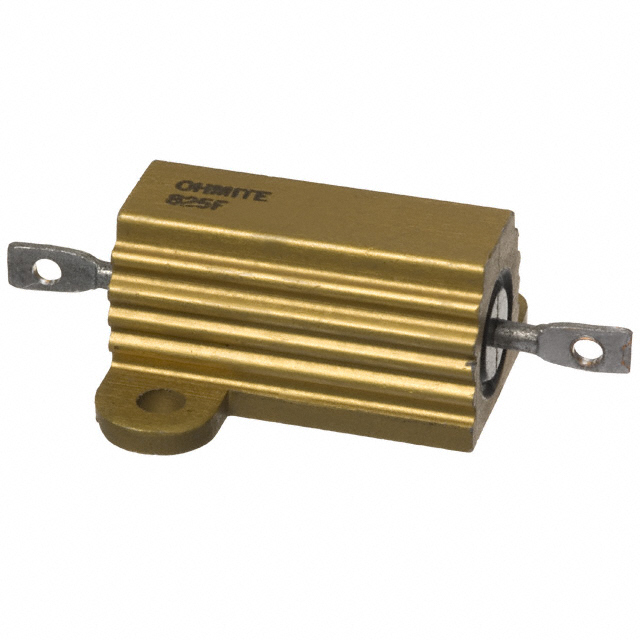

OHMITE 825F750E 绕线电阻, 750欧姆 1% 25W
750 Ohms ±1% 25W 绕线 底座安装器
艾睿:
Res Wirewound 750 Ohm 1% 25W ±20ppm/°C Aluminum Housed AXL Flange Mount
Allied Electronics:
Resistor; Wirewound; Res 750 Ohms; Pwr-Rtg25 W; Tol 1%; Lug; Alum Housed
Verical:
Res Wirewound 750 Ohm 1% 25W ±20ppm/C Aluminum Housed AXL Chassis Mount
Newark:
# OHMITE 825F750E Resistor, Axial Leaded, 750 ohm, 25 W, 520 V, ± 1%, 825 Series, Wirewound
MASTER:
Res Wirewound 750 Ohm 1% 25W ±20ppm/°C Aluminum Housed AXL Chassis Mount
Online Components:
Res Wirewound 750 Ohm 1% 25W ±20ppm/°C Aluminum Housed AXL Flange Mount
Electro Sonic:
Res Wirewound 750 Ohm 1% 25W ±20ppm/°C Aluminum Housed AXL Chassis Mount
额定电压DC 520 V
容差 ±1 %
额定功率 25 W
电阻 750 Ω
阻值偏差 ±1 %
额定电压 520 V
安装方式 Chassis, Axial
引脚数 2
封装 Axial, Box
长度 49.23 mm
宽度 27.79 mm
高度 14.28 mm
脚长度 11.85 mm
封装 Axial, Box
工作温度 -55℃ ~ 275℃
温度系数 ±20 ppm/℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533290000
