850FR30

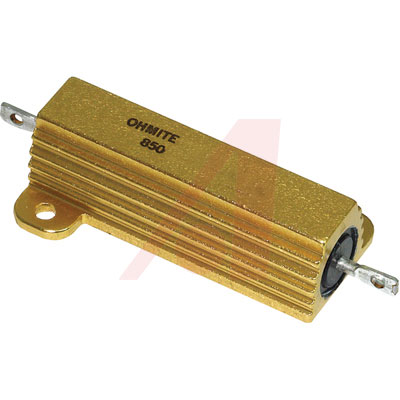

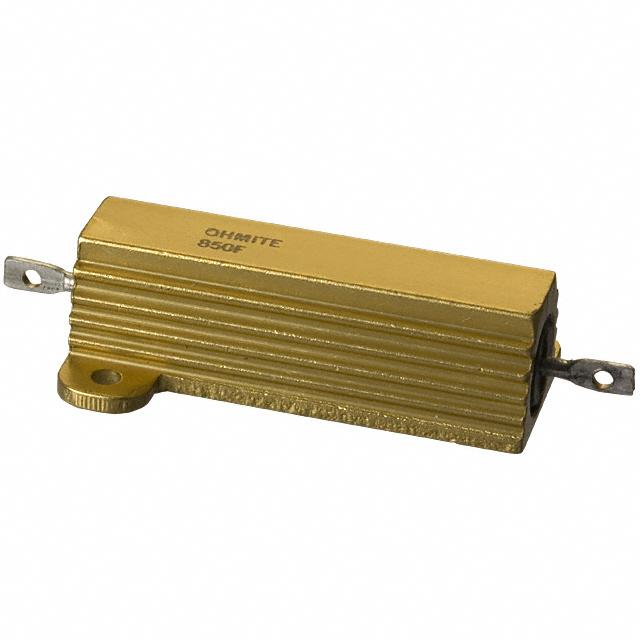

850FR30图片1
850FR30图片2
850FR30图片3
850FR30图片4
850FR30图片5
850FR30图片6
850FR30概述

线绕电阻器 - 底架安装 50watt .3ohm 1%

These molded-construction metal housed axial-lead performance resistors are available in higher power ratings than standard axial-lead resistors and are better suited to withstand shock, vibration and harsh environmental conditions. Metal-Mite resistors are aluminum housed to maintain high stability during operation and to permit secure mounting to chassis surfaces. The metal housing also provides heat-sinking capabilities, allowing the units to exceed the power ratings set by Mil specifications. Meets or exceeds MIL-R-18546 specifications. Solder coated axial lead terminals.
.
*Tolerance:** ±1%. Power rating based on chassis mounting area and temperature stability. Proper heat sink for wattage is: 4" × 6" × 2" × .040" aluminum chassis for 5 and 10 watt units; 5" × 7" × 2" × .040" aluminum chassis for 25 watt units; 12" × 12" × .059" aluminum panel for 50 watt units.
850FR30中文资料参数规格
技术参数

容差 ±1 %

额定功率 50 W

电阻 300 mΩ

封装参数

安装方式 Solder Lug, Chassis

封装 Axial, Box

外形尺寸

长度 49.1 mm

宽度 14.2 mm

高度 15.49 mm

封装 Axial, Box

物理参数

工作温度 -55℃ ~ 275℃

温度系数 ±90 ppm/℃

其他

产品生命周期 Obsolete

包装方式 Bulk

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

海关信息

ECCN代码 EAR99

HTS代码 8533290000

数据手册

850FR30引脚图与封装图

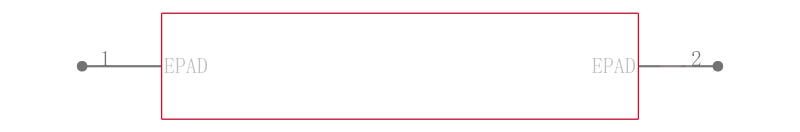

850FR30引脚图

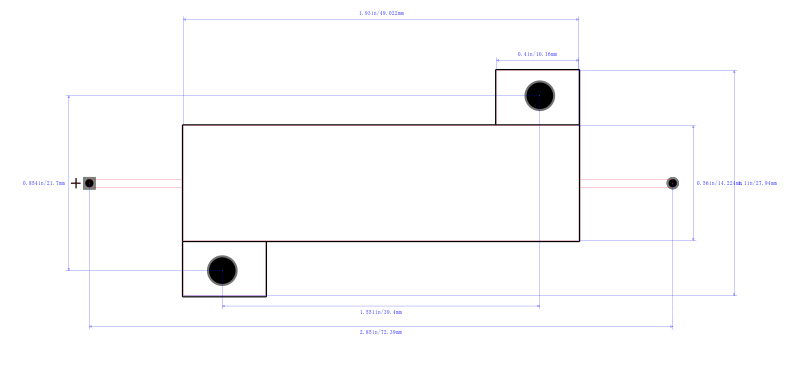

850FR30封装图

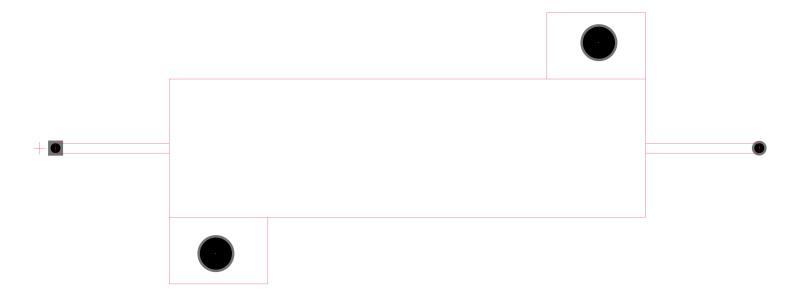

850FR30封装焊盘图
在线购买850FR30
型号: 850FR30
制造商: Ohmite
描述:线绕电阻器 - 底架安装 50watt .3ohm 1%
