825F15KE

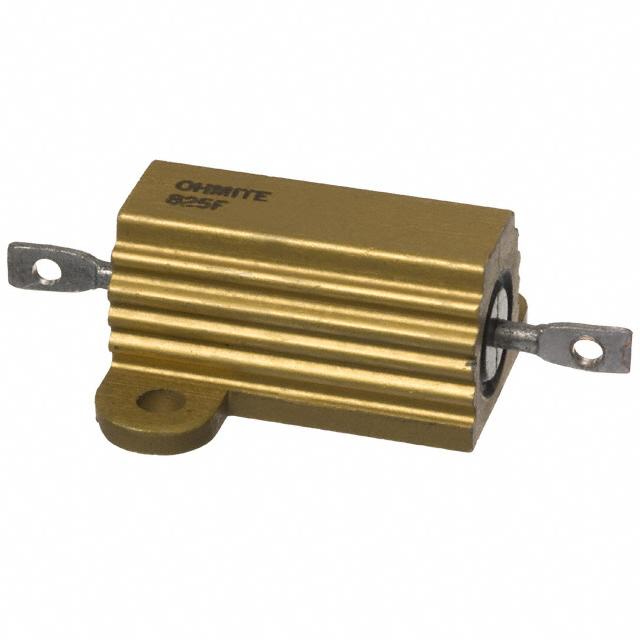

825F15KE图片1
825F15KE图片2

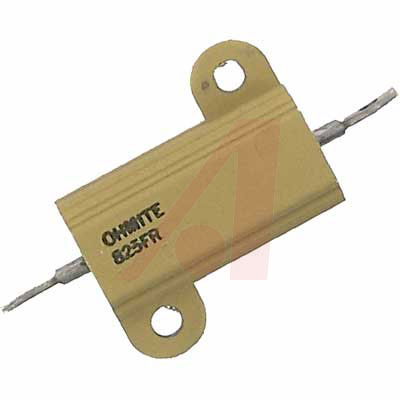

825F15KE图片3
825F15KE概述

线绕电阻器 - 底架安装 25watt 15K 1%

These molded-construction metal housed axial-lead performance resistors are available in higher power ratings than standard axial-lead resistors and are better suited to withstand shock, vibration and harsh environmental conditions. Metal-Mite resistors are aluminum housed to maintain high stability during operation and to permit secure mounting to chassis surfaces. The metal housing also provides heat-sinking capabilities, allowing the units to exceed the power ratings set by Mil specifications. Meets or exceeds MIL-R-18546 specifications. Solder coated axial lead terminals.
.
*Tolerance:** ±1%. Power rating based on chassis mounting area and temperature stability. Proper heat sink for wattage is: 4" × 6" × 2" × .040" aluminum chassis for 5 and 10 watt units; 5" × 7" × 2" × .040" aluminum chassis for 25 watt units; 12" × 12" × .059" aluminum panel for 50 watt units.
825F15KE中文资料参数规格
技术参数

容差 ±1 %

额定功率 25 W

电阻 15 KΩ

额定电压 520 V

封装参数

安装方式 Solder Lug

封装 Axial, Box

外形尺寸

长度 49.23 mm

宽度 27.79 mm

高度 14.28 mm

封装 Axial, Box

物理参数

工作温度 -55℃ ~ 275℃

温度系数 ±20 ppm/℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

825F15KE引脚图与封装图

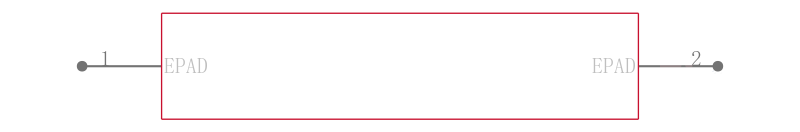

825F15KE引脚图

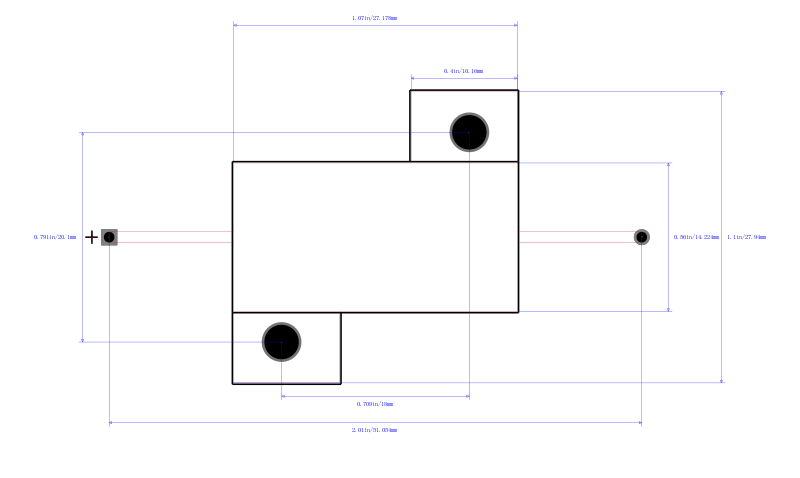

825F15KE封装图

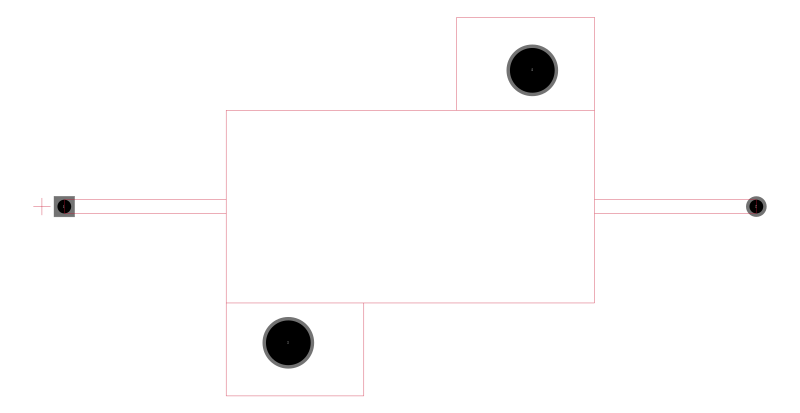

825F15KE封装焊盘图
在线购买825F15KE
型号: 825F15KE
制造商: Ohmite
描述:线绕电阻器 - 底架安装 25watt 15K 1%
