Relay: electromagnetic; DPDT; Ucoil:5VDC; 8A/250VAC; 8A/30VDC; 8A
RT425005
艾睿:
Electromechanical Relay 5VDC 62Ohm 15A DPDT 29x12.7x15.7mm THT Power Relay
安富利:
Electromechanical Relay DPDT 15A 5VDC 62Ohm Through Hole
Chip1Stop:
Electromechanical Relay 5VDC 62Ohm 15A DPDT 29x12.7x15.7mm THT Power Relay
TME:
Relay: electromagnetic; DPDT; Ucoil:5VDC; 8A/250VAC; 8A/30VDC; 8A
Verical:
Electromechanical Relay 5VDC 62Ohm 15A DPDT 29x12.7x15.7mm THT Power Relay
MASTER:
RT425005
Powell:
Industrial Relays General Purpose
Online Components:
RT425005
Electro Sonic:
RT425005
触点电镀 Gold
额定电压AC 400 V
输入电压DC 5.00 V
跌落电压 500 mV
触点额定电流 15 A
线圈电压 5 VDC
线圈电流 80 mA
线圈功率DC 400 mW
线圈电阻 62 Ω
额定电流Max 15 A
线圈电压DC 5 V
线圈功率 403 mW
额定功率Max 2 KVA
安装方式 Through Hole
引脚数 8
封装 DIP

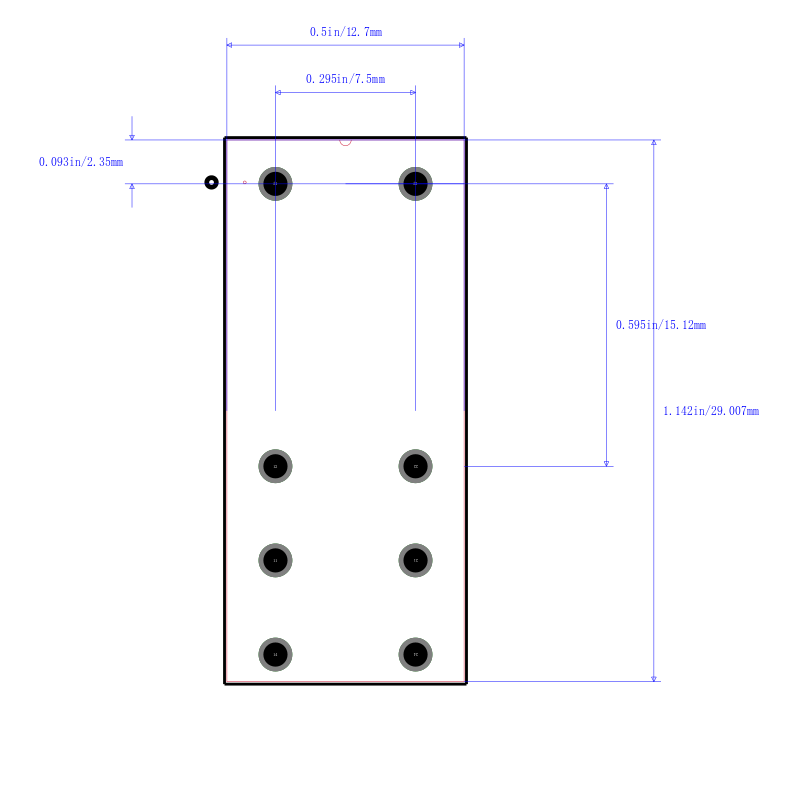

长度 29 mm
宽度 12.7 mm
高度 15.7 mm
封装 DIP
重量 14 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410060
