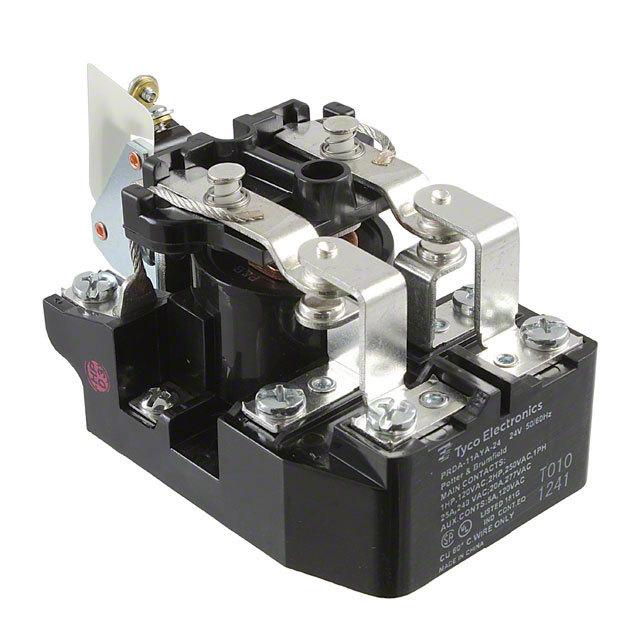

通用继电器 PRDA-11AYA-24
Electromechanical Relay DPDT 25A 24VAC 12Ohm
Product Highlights
PRD Series
Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 25 Amps.
Monostable Coil Magnetic System
Input Voltage = 24 VAC
贸泽:
General Purpose Relays PRDA-11AYA-24
艾睿:
Power Relay 24VAC 25A DPDT107.96x63.8x63.5mm
Verical:
Electromechanical Relay 24VAC 12Ohm 25A DPDT 107.96x63.8x63.5mm Power Relay
MASTER:
Electromechanical Relay DPDT 25A 24VAC 12Ohm
Powell:
EMG Contactors and Solenoids
Online Components:
Electromechanical Relay DPDT 25A 24VAC 12Ohm
Electro Sonic:
Electromechanical Relay DPDT 25A 24VAC 12Ohm
额定电压AC 240 V
绝缘电阻 100 MΩ
触点额定电流 25 A
线圈电流 410 mA
线圈电压AC 24 V
线圈电阻 12 Ω
额定电流Max 25 A
开关电流Max 25 A
工作温度Max 45 ℃
工作温度Min -55 ℃
接触电阻Max 75 mΩ
安装方式 Screw Terminals, Chassis
高度 63.5 mm
触点材质 Silver
工作温度 -55℃ ~ 45℃
产品生命周期 Unknown
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 8536490075
