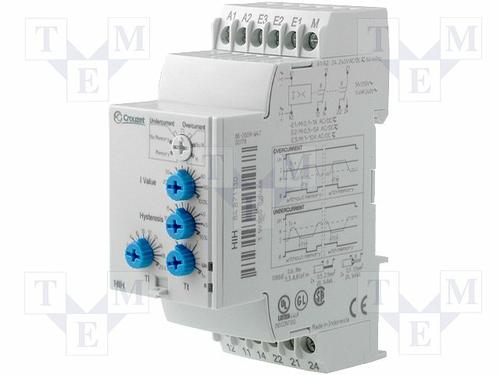

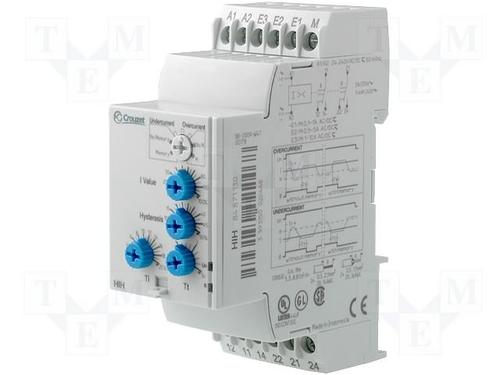

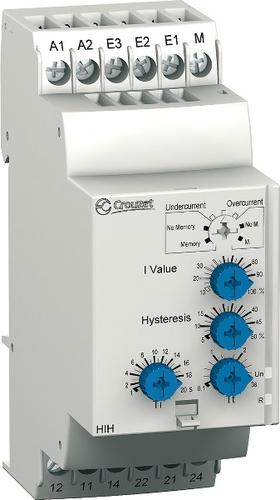

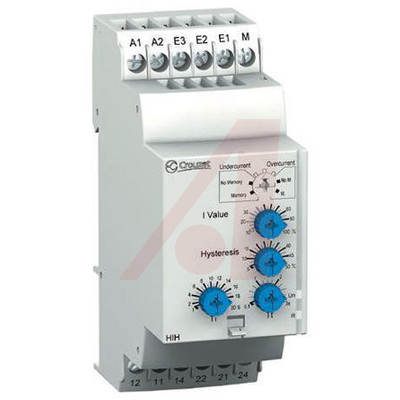

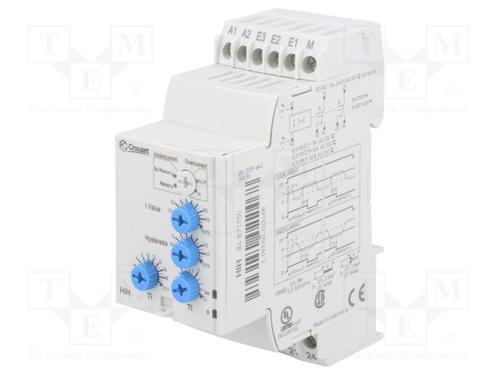

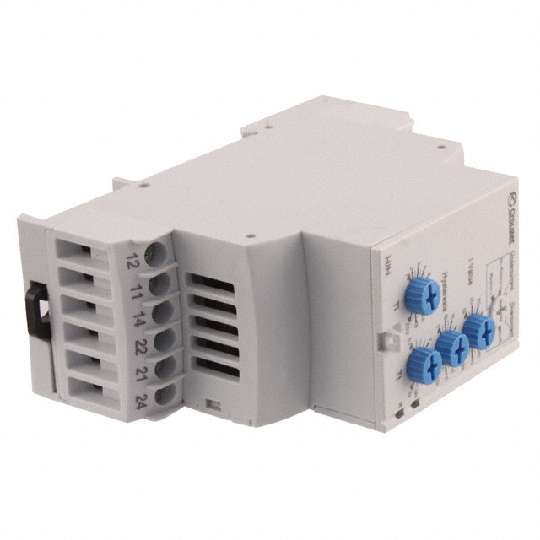

Electromechanical Relay 24V to 240VAC 5A SPDT 35x69x92.6mm DIN Rail Current Control Relay
电流检测 AC/DC 24 ~ 240VAC/DC
得捷:
RELAY MONITOR CURRNT 0.1-10A ADJ
贸泽:
Controllers HIH CURRENT CONTROL UN-OVER 24-240VAC
Allied Electronics:
Current Monitoring Relay with 2NO/2NC Contacts; 3 Phase; 24 - 240 V ac/dc
Chip1Stop:
Electromechanical Relay 24V to 240VAC 5A SPDT 35x69x92.6mm DIN Rail Current Control Relay
TME:
Module: current monitoring relay; AC current, DC current; 0.1÷3s
Verical:
Electromechanical Relay 24V to 240VAC 5A SPDT 35x69x92.6mm DIN Rail Current Control Relay
Newark:
Current Monitoring Relay, HIH Series, SPDT, 5 A, DIN Rail, 250 VAC, Screw
Online Components:
Electromechanical Relay 24V to 240VAC 5A SPDT 35x69x92.6mm DIN Rail Current Control Relay
Electro Sonic:
Electromechanical Relay 24V to 240VAC 5A SPDT 35x69x92.6mm DIN Rail Current Control Relay
电源电压DC 240V max
额定电压AC 250 V
输出接口数 1
触点类型 SPDT
功耗 3.5 VA
触点额定电流 5 A
线圈电压 240V, 240Vmax
线圈电压AC 240 V
载流 5.00 A
输入数 1
额定功率Max 1.25 KVA
工作温度Max 50 ℃
工作温度Min -20 ℃
额定电压 250 VAC
电源电压 24.240VDC, 24.240VAC
电源电压Max 240 V
安装方式 DIN Rail
宽度 90 mm
高度 92.6 mm
工作温度 -20℃ ~ 50℃
产品生命周期 Active
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
