Electromechanical Relay 12VDC 180Ω 8A 3PST-NO/SPST-NC 40mm 13mm 16.5mm THT Safety Relay
SR4M4012
Product Highlights
Relay Type = Safety Relay SR4 D/M
SR4 D/M Series
DC Actuating System

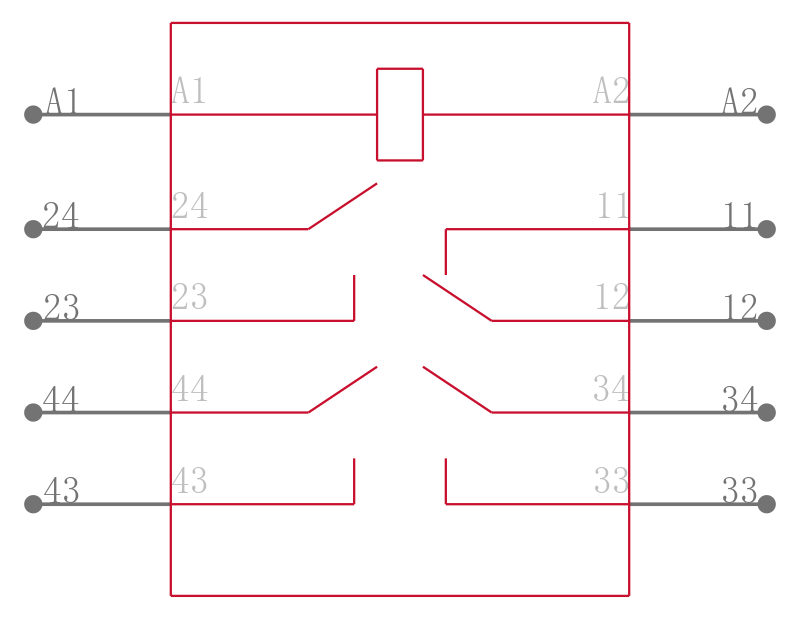

Contact Arrangement = 3 Form A & 1 Form B, 3PST-NO & SPST-NC, 3 N/O & 1 N/C
Contact Current Rating = 8 Amps.
得捷:
SR4M4012
立创商城:
8-1415053-1
艾睿:
Electromechanical Relay 12VDC 180Ohm 8A 3PST-NO/SPST-NC 40mm 13mm 16.5mm THT Safety Relay
安富利:
Electromechanical Relay 3PST-NO/SPST-NC 8A 12VDC 180Ohm Through Hole
TME:
Relay: electromagnetic; 3PST-NO + SPST-NC; Ucoil:12VDC; 8A/30VDC
Verical:
Electromechanical Relay 12VDC 180Ohm 8A 3PST-NO/SPST-NC 40mm 13mm 16.5mm THT Safety Relay
MASTER:
SR4M4012
Powell:
EMG Safety Relays
Online Components:
SR4M4012
Electro Sonic:
SR4M4012
额定电压AC 400 V
额定电流 8.00 A
绝缘电阻 100 MΩ
输入电压DC 12.0 V
触点类型 SPST-NC
接触电阻 100 mΩ
触点额定电流 8 A
线圈电压 12 VDC
线圈电流 66.67 mA
线圈功率DC 800 mW
线圈电阻 180 Ω
额定电流Max 8 A
线圈电压DC 12 V
额定功率Max 2 KVA
工作温度Max 70 ℃
工作温度Min -25 ℃
安装方式 Through Hole
引脚数 10
封装 -
长度 40.0 mm
宽度 13.0 mm
高度 16.5 mm
封装 -
触点材质 Silver Tin Oxide
重量 16.0 g
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536410050
