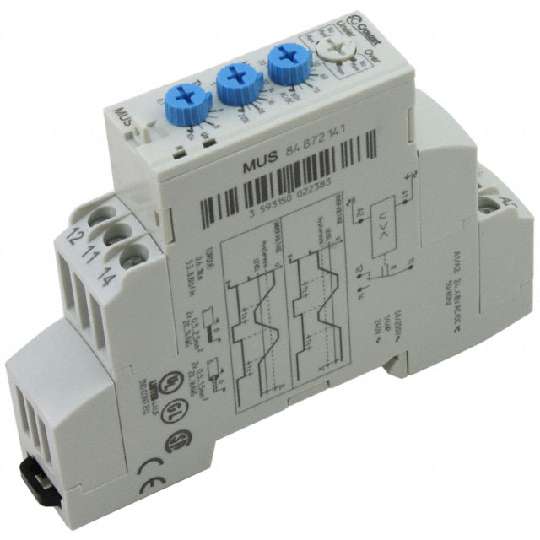

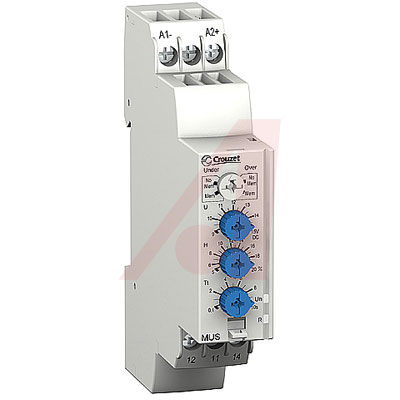

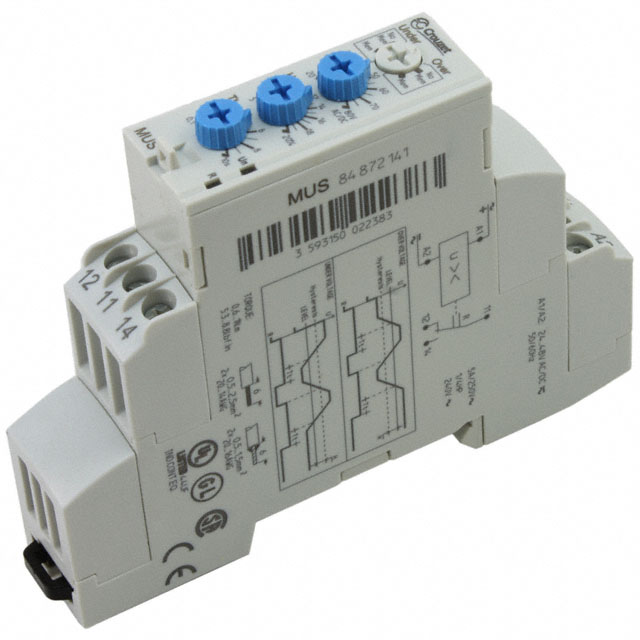

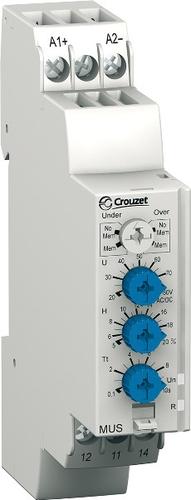

Electromechanical Relay 80VDC 80VAC 5A SPDT 92.6x17.5x69mm DIN Rail Voltage Relay
Controls AC and DC voltages, with and without memory. When the voltage reaches the threshold set point the output changes state at the end of the selected time delay. Once the voltage drops below the hysteresis % of the threshold the output changes instantly. In memory mode the relay remains in the faulted condition until the unit is reset manually.**Features:**
* MUS/MUSF Space Saving 17.55 mm Package
* HU Series Space Saving 35 mm Package
* Built-In Time Delays to Eliminate Nuisance Tripping
* Monitors AC and DC Voltages
* Measures From 0.2 to 600 V
* 5-50% Hysteresis Range
* Latching or Non-Latching Modes
* Memory/No Memory
* Frequency: 50/60 Hz
电源电压DC 80.0V max
额定电压DC 250 V
额定电压AC 250 V
额定电流 5 A
额定功率 1.25 kVA
输出接口数 1
触点类型 SPDT
功耗 3.9 VA
触点额定电流 5 A
载流 5.00 A
输入数 1
额定功率Max 1.25 KVA
额定电压 250 VAC
电源电压 24VAC ~ 48VAC
电源电压Max 80 V
安装方式 DIN Rail
引脚数 9
高度 69 mm
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
