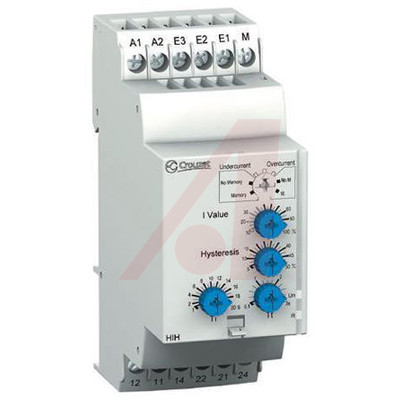

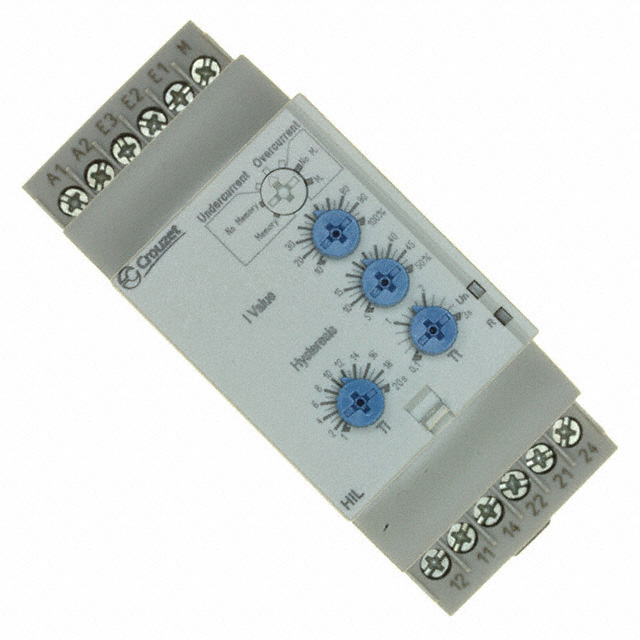

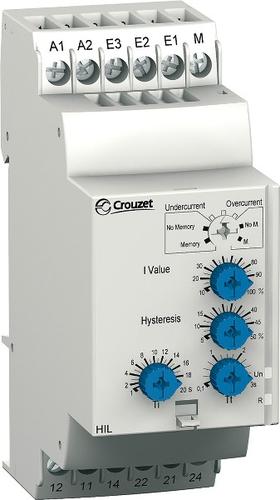

84871120

SPDT, Latched, 0.003A Coil, 240VDC Coil, 600mW Coil, 5A Contact, 250VDC Contact, AC-DC Input, AC-DC Output, DIN-Rail Mount, ROHS COMPLIANT

Controls AC and DC currents with and without memory. When the current reaches the threshold set point, the output changes state at the end of the selected time delay. Once the current drops below the hysteresis % of the threshold, the output changes state instantly. In memory mode, the relay remains in the faulted condition until the unit is reset manually. HI, EI Series are over- or under-current selectable. Ideal for where maintaining current levels is crucial for equipment protection. Outputs rated for 8 A resistive loads.

.

*Approvals:** UL and cUL listed and CSA Certified. IRT models UL Recognized only.

**Features:**

* Monitor AC or DC Current

* HI Series Monitor 5 mA to 10 A

* MIC Series Monitor 2 A to 20 A

* MIC Series Has Built-In Current Transformer

* Selectable Memory Function

* Monitor Over and Under Current
