8125SD3V2PE

8125SD3V2PE图片1
8125SD3V2PE图片2

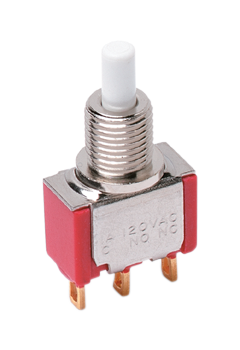

8125SD3V2PE图片3
8125SD3V2PE图片4
8125SD3V2PE概述

Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Bracket Mount/Through Hole

按钮 SPDT 标准 通孔


得捷:
SWITCH PUSH SPDT 0.4VA 20V


立创商城:
8125SD3V2PE


贸泽:
Pushbutton Switches Pushbutton


艾睿:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Bracket Mount/Through Hole Bulk


Allied Electronics:
Switch Push Button ON Mom SPDT Round Plunger 20VAC


Verical:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact Bracket Mount/Through Hole PC Pins Bulk


MASTER:
Snap-acting Momentary Pushbutton Switches


Online Components:
Snap-acting Momentary Pushbutton Switches


Electro Sonic:
Snap-acting Momentary Pushbutton Switches


8125SD3V2PE中文资料参数规格
技术参数

额定电压DC 20 V

额定电压AC 20 V

额定电流 1 A

排数 1

额定功率 0.4 VA

工作温度Max 75 ℃

工作温度Min -30 ℃

额定电压DC Max 20 V

额定电压AC Max 20 V

接触电阻Max <50 mΩ

封装参数

安装方式 Through Hole

封装 -

外形尺寸

长度 19.56 mm

高度 14.1 mm

封装 -

物理参数

触点材质 Copper Alloy

工作温度 -30℃ ~ 75℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买8125SD3V2PE
型号: 8125SD3V2PE
制造商: C&K Components
描述:Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Bracket Mount/Through Hole
