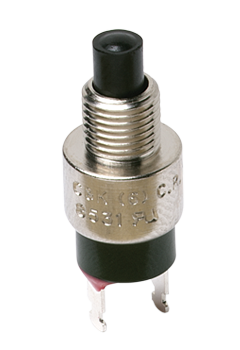

Switch Push Button OFF Mom SPST Round Plunger 3A 120VAC 28VDC Momentary Contact Solder Lug Panel Mount
This classic push button switch from C&K Components will do exactly what you need it to do by turning your circuit on and off. This device has a maximum current rating of 3 A @ 120VAC 28VDC. It has a SPST configuration. This push switch has an operating temperature range of -30 °C to 65 °C. The 8552MZQE2 push switch has a solder lug termination style. This product is 9.53 mm long, 23.75 mm tall and 9.53 mm deep. The maximum AC voltage rating is 120 VAC and the maximum DC voltage rating is 28 VDC.
额定电压DC 28 V
额定电压AC 120 V
额定电流 3A AC, 3A DC
排数 1
触点类型 SPST
额定电流Max 3A @120VAC, 28VDC
工作温度Max 65 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 120 V
接触电阻Max <30 mΩ
安装方式 PCB
封装 -
长度 9.53 mm
高度 23.75 mm
封装 -
触点材质 Coin Silver
产品生命周期 10000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509031
