8221MD9AGE

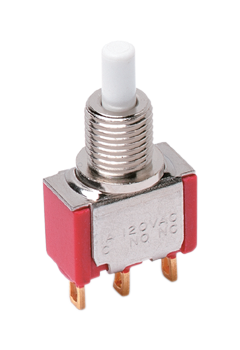

Switch Push Button ON Mom DPDT Round Plunger 1A 120VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole

Ideal for quick switching situations this push button switch manufactured from C&K Components is a must. It has a DPDT configuration. This device has a maximum current rating of 1 A @ 120VAC 28VDC. This push switch has an operating temperature range of -30 °C to 75 °C. The 8221MD9AGE push switch has a PC pin termination style. This product is 12.7 mm long, 11.43 mm tall and 30.05 mm deep. The maximum AC voltage rating is 120 VAC and the maximum DC voltage rating is 28 VDC.
