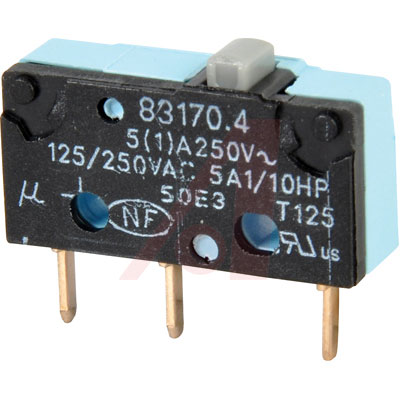

基本/快动开关 SNSW 5A PCB BTM ASYM NONE
83170 Series Subminiature Switches, 250 V Voltage Rating
Miniature Snap Action Switches are available in a variety of forces, amps and terminal configurations.
Due to their compact size and light weight, they are ideally suited for applications with limited space.
* UL, cUL Recognized, CE Compliant, NF
* Available in Standard and High Force Versions
* 0.1 to 10.1 Amp Versions Standard
* Pin or Mushroom Button MB Plunger Available
* Choice of Form C SPDT, Form B NC or Form A NO Contact Type
* Contacts: Nickel Silver of Gold-Plated Nickel Silver 0.1 Amp-Low Current Version
* Wide Operating Temperature Range -4 to 266°F
* Terminals: 0.110" Quick Connect, Solder and PCB 6 Versions
* Wide Variety of Standard and Custom Actuators
* Actuator Mounting: 2-Factory or User Left to Right; Providing Various Forces and Tolerances; Right Position Increases Actuation Force, Decreases; Movement Differential, Lowers Trip Point
