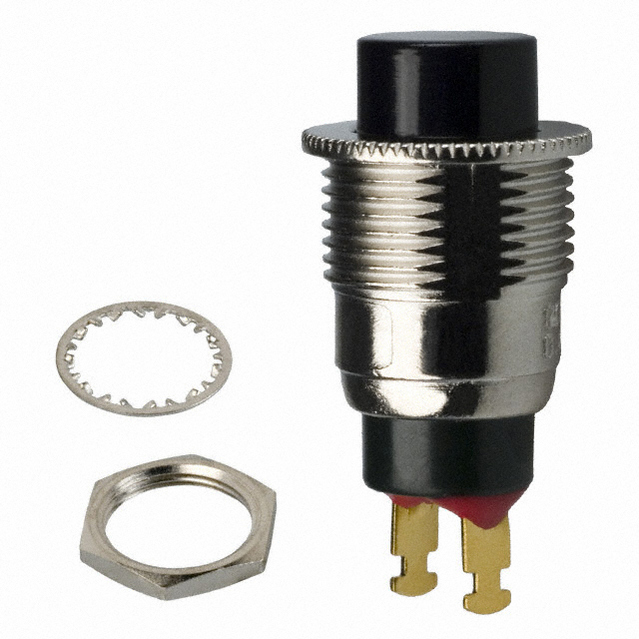

8500 系列 微型 单刀单掷 关-瞬时 面板安装 焊片 按键开关
Ideal for low current and low voltage circuits, this push button switch from C&K Components will allow you to switch from connected to disconnected state. It has a SPST configuration. This push switch has an operating temperature range of -30 °C to 65 °C. The 8532T1ZBE2 push switch has a solder lug termination style. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 20 VDC. This product is 13.46 mm long, 26.08 mm tall and 13.46 mm deep.
触点电镀 Gold
额定电压DC 20 V
额定电压AC 20 V
绝缘电阻 1 GΩ
排数 1
触点类型 SPST
触点额定电流 1.00 A
工作温度Max 65 ℃
工作温度Min -30 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <30 mΩ
安装方式 Lug, Panel
长度 9.53 mm
高度 26.08 mm
触点材质 Copper Alloy
工作温度 -30℃ ~ 65℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
