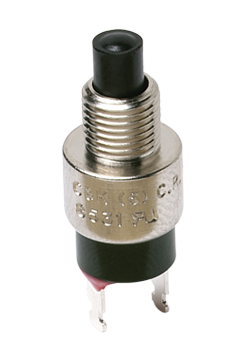

Switch Push Button OFF Mom SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole
Turn on and off portions of your circuit design with the aid of this push button switch manufactured from C&K Components. It has a SPST configuration. This push switch has an operating temperature range of -30 °C to 65 °C. The 8532T1CBE2 push switch has a PC pin termination style. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 20 VDC. This product is 13.46 mm long, 22.55 mm tall and 13.46 mm deep.
额定电压DC 20 V
额定电压AC 20 V
排数 1
额定功率 0.4 VA
工作温度Max 65 ℃
工作温度Min -30 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <30 mΩ
安装方式 Through Hole
封装 -
长度 9.53 mm
高度 22.55 mm
封装 -
触点材质 Copper Alloy
工作温度 -30℃ ~ 65℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509031
