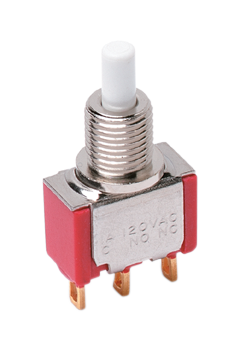

Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole
按钮 SPDT 标准 面板安装,直角,后
得捷:
SWITCH PUSH SPDT 0.4VA 20V
立创商城:
8125SYABE
贸泽:
Pushbutton Switches Pushbutton
艾睿:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole Bulk
Allied Electronics:
Switch Push Button ON Mom SPDT Round Plunger 20VAC
安富利:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole
Chip1Stop:
Switch Push Button N.C. SPDT Plunger 20VAC 20VDC 0.4W Momentary Contact Right Angle Thru-Hole
Verical:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole Bulk
Newark:
# C & K COMPONENTS 8125SYABE Pushbutton Switch,RIGHT ANGLE,SPDT,ON-ON,PC TAIL Terminal,PCB Hole Count:5
MASTER:
Snap-acting Momentary Pushbutton Switches
Electro Sonic:
Snap-acting Momentary Pushbutton Switches
额定电压DC 20 V
额定电压AC 20 V
额定电流 1 A
排数 1
额定功率 0.4 VA
工作温度Max 75 ℃
工作温度Min -30 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <50 mΩ
安装方式 PC Board, Panel
封装 -
长度 12.7 mm
高度 6.86 mm
封装 -
触点材质 Copper Alloy
工作温度 -30℃ ~ 75℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
