8-142

CINCH  8-142  端子排

8 电路 0.563"（14.30mm） 隔板接线座 螺钉

得捷:

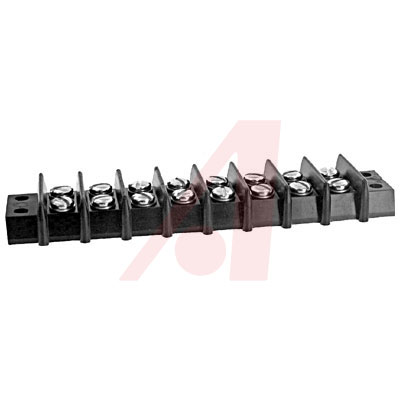

CONN BARRIER STRIP 8CIRC 0.563"

e络盟:
端子排

艾睿:
Say goodbye to wires becoming undone by using this barrier strip 8142 PCB terminal block developed by Cinch Connectors. This is a 2-row connector. It has a straight body orientation. Its pitch is 14.3 mm. It has a maximum voltage rating of 250 VAC. 8142 is housed in phenolic. This device has a maximum current rating of 30 A. This product is 38.1 mm tall. This quick disconnect terminal has an operating temperature of -48 to 148 °C. It uses the screw termination method. Its wire is 10 AWG.

Allied Electronics:
Conn; Term Strip; Barrier; 8; .563 Density; Dbl Row; 10 AWG; 30 A; 250 V

Jameco:
Connector Barrier Strip

Chip1Stop:
Conn Barrier Strip 16 POS 14.3mm Screw ST Panel Mount 30A

Newark:
# CINCH  8-142  Panel Mount Barrier Terminal Block, 2 Row, 8 Positions, 10 AWG, 14.3 mm, 30 A

MASTER:
Conn Barrier Strip 16 POS 14.3mm Screw ST Panel Mount 30A

Electro Sonic:
Conn Barrier Strip 16 POS 14.3mm Screw ST Panel Mount 30A
