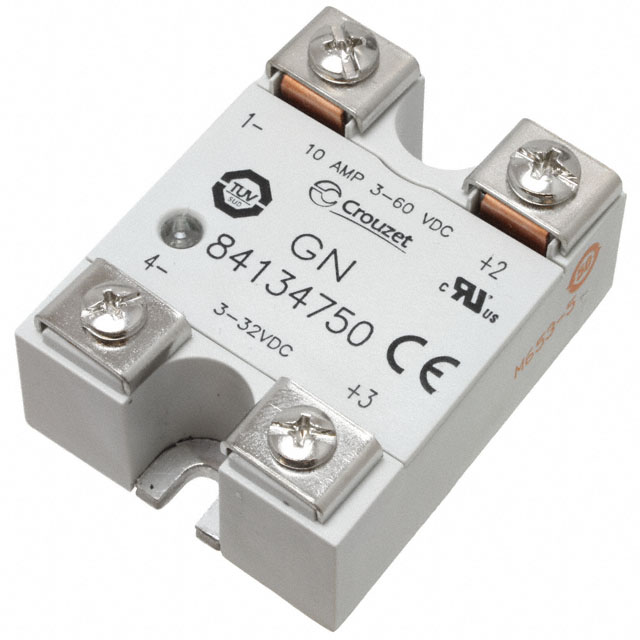

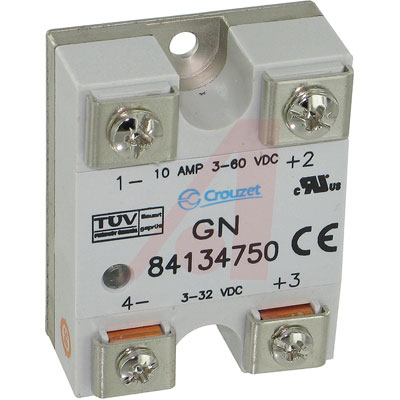

CRYDOM 84134750 固态继电器, 面板安装
固态 SPST-NO（1 Form A） Hockey Puck
贸泽:
固态继电器-工业安装 10A/60Vdc DC In Xstr
e络盟:
固态继电器, 面板安装
艾睿:
Relay SSR 14.5mA 32V DC-IN 10A 60V DC-OUT 4-Pin Case IP-100
Allied Electronics:
Relay; SSR; Control; Cur-Rtg 10A; Ctrl-V 3-32DC; Vol-Rtg 3-60DC; UL, CE; GF Series
Verical:
Relay SSR 14.5mA 32V DC-IN 10A 60V DC-OUT 4-Pin Case IP-100
Newark:
# CRYDOM 84134750 Solid State Relay, 10 A, Panel, Screw, 3 VDC, 60 VDC
MASTER:
Solid State Relay, Voltage Input: 3-32 VDC, Voltage Load: 3-60VDC, Current Rating: 10 A, Panel Mount
Online Components:
SOLID STATE RELAY 24-280 V - GN IP00 SSR, 10A/60Vdc, DC In, BJT
Electro Sonic:
Solid State Relay, Voltage Input: 3-32 VDC, Voltage Load: 3-60VDC, Current Rating: 10 A, Panel Mount
工作电压 60.0V max
额定电流 10 A
输出电流 10000 mA
负载电流 10 A
输入电流 14.5 mA
隔离电压 4000 v
输入电压Max 32 V
输入电压Min 3 V
输出电压Max 60 V
输出电流Max 10 A
输入电流Min 14.5 mA
负载电流Min 1000 mA
工作温度Max 80 ℃
工作温度Min -20 ℃
额定电压 60 VDC
工作电压Min 3 VDC
工作电压Max 60 VDC
输入电压 3VDC ~ 32VDC
引脚数 4
封装 IP-100
封装 IP-100
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
