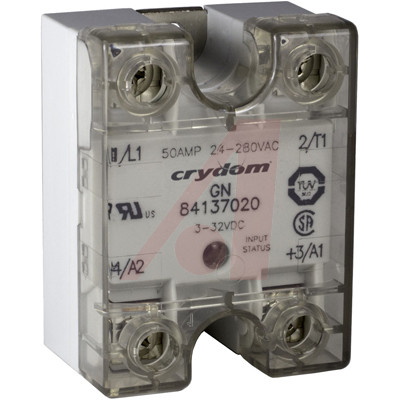

固态继电器-工业安装 SOLID STATE RELAY 24-280 VAC
The GN Series offers a group of robust and versatile general-purpose AC and DC Panel Mount relays.
These powerful single phase SSRs have superior thermal performance thanks to the use of DBC technology and are available in IP20 or IP00 protection degree packages.
These new generation solid state relays all feature anti-rotation barriers, flexible control voltage options, LED input status indicator, overvoltage protection on all AC output relays, and a wide range of power ratings to make your product selection easier.
* Current ratings from 10 to 125 amps
* Output voltage 24-280 and 48-660 VAC
* Direct bond copper substrate
* LED input status indicator
* Available with IP20 “touch-safe” cover
* Transient protection built-in
* UL508 Endurance Rating 10-50A
* UL/CSA/TUV Approved, CE Compliant to EN60950-1
额定电流 75 A
输出电流 75000 mA
输入电流 15 mA
隔离电压 4000 v
输入电压Max 36 V
输入电压Min 18 V
输出电压Max 280 V
输入电流Min 15 mA
负载电流Min 100 mArms
工作温度Max 80 ℃
工作温度Min -40 ℃
输入电压 18VAC ~ 36VAC
引脚数 4
封装 Hockey Puck
高度 30.9 mm
封装 Hockey Puck
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490080
