84137240

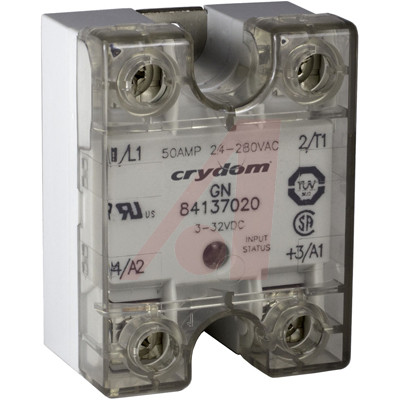

Relay SSR 14mA 32V DC-IN 100A 280V AC-OUT 4Pin

The GN Series offers a group of robust and versatile general-purpose AC and DC Panel Mount relays.

These powerful single phase SSRs have superior thermal performance thanks to the use of DBC technology and are available in IP20 or IP00 protection degree packages.

These new generation solid state relays all feature anti-rotation barriers, flexible control voltage options, LED input status indicator, overvoltage protection on all AC output relays, and a wide range of power ratings to make your product selection easier.

* Current ratings from 10 to 125 amps

* Output voltage 24-280 and 48-660 VAC

* Direct bond copper substrate

* LED input status indicator

* Available with IP20 “touch-safe” cover

* Transient protection built-in

* UL508 Endurance Rating 10-50A

* UL/CSA/TUV Approved, CE Compliant to EN60950-1
