84533-8

FFC & FPC连接器 POST PLATED R/A 8P 1.25mm

8 位置 FFC 触点，顶部 0.049"（1.25mm） 通孔，直角

得捷:
CONN FFC TOP 8POS 1.25MM R/A

贸泽:
FFC & FPC连接器 POST PLATED R/A 8P 1.25mm

艾睿:

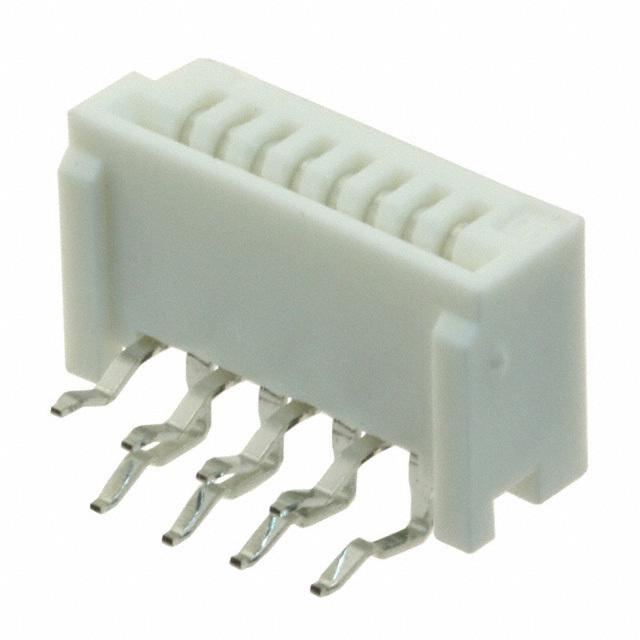

Look no further than fpc connector 84533-8 flexible flat cable from TE Connectivity, the perfect solution for embedding a greater number of electrical lines within a tightly constrained space. Its pitch is 1.25 mm. It has a right angle body orientation. This socket type connector&s;s 8 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 1-row connector. The component will be shipped in tray format. This product is 13.75 mm long, 4.8 mm tall and 8.6 mm deep. It uses the solder termination method. 84533-8 is housed in white polybutylene terephthalate.

安富利:
Conn FPC Connector SKT 8 POS 1.25mm Solder RA Thru-Hole

Chip1Stop:
Conn FPC Connector SKT 8 POS 1.25mm Solder RA Thru-Hole Tray

Verical:
Conn FPC Connector SKT 8 POS 1.25mm Solder RA Thru-Hole Tray

Newark:
# AMP - TE CONNECTIVITY  84533-8  FFC / FPC Board Connector, FPC Series, 8 Contacts, Receptacle, 1.25 mm, Through Hole, Top

MASTER:
assy, 1.25mm FFC CONN, HORIZONTAL POST PLATED

Powell:
FPC Flexible Printed Circuit Connectors

Online Components:
1.25MM FFC POST PLATED H 8P

Electro Sonic:
1.25MM FFC POST PLATED H 8P
