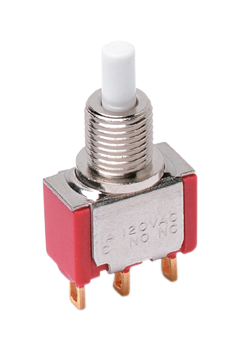

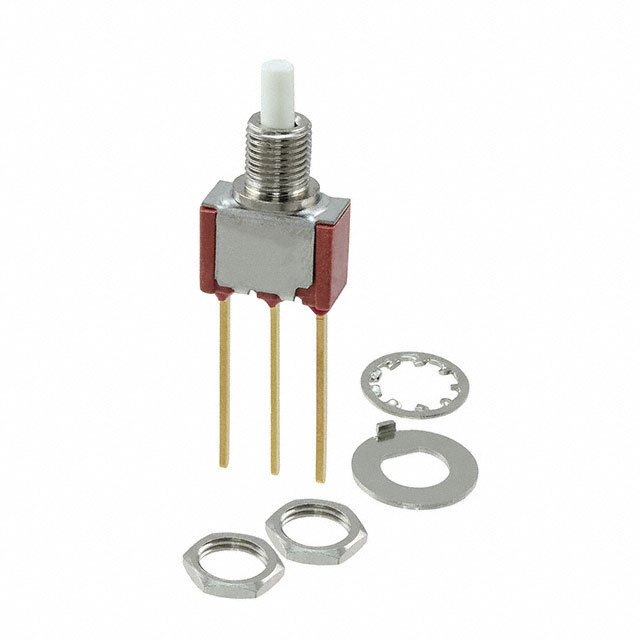

Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact Wire Wrap Panel Mount
Ideal for quick switching situations this push button switch manufactured from C&K Components is a must. It has a SPDT configuration. This push switch has a minimum operating temperature of -30 °C and a maximum of 75 °C. The 8125SHWBE push switch has a wire wrap termination style. This product is 12.7 mm long, 41.35 mm tall and 7.98 mm deep. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 20 VDC.
触点电镀 Gold
额定电压DC 20 V
额定电压AC 20 V
排数 1
触点类型 SPDT
触点额定电流 1.00 A
工作温度Max 75 ℃
工作温度Min -30 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <50 mΩ
安装方式 Snap-In
封装 -
长度 12.7 mm
高度 41.35 mm
封装 -
触点材质 Copper Alloy
工作温度 -30℃ ~ 75℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
