Fuses with Leads Through Hole 250V IEC TL SL 2A TE7
2A 250V AC DC Fuse Board Mount Cartridge Style Excluded Through Hole Radial, Box
得捷:
FUSE BOARD MOUNT 2A 250VAC RAD
贸泽:
Fuses with Leads Through Hole 250V IEC TL SL 2A TE7
艾睿:
Fuse Subminiature Slow Blow Acting 2A 250V Radial 12.4 X 6.4 X 9.2mm Bulk
Verical:
Fuse Subminiature Slow Blow Acting 2A 250V Radial 12.4 X 6.4 X 9.2mm Bulk
Newark:
# LITTELFUSE 80412000440 Fuse, PCB Leaded, 2 A, 250 VAC, 804 Series, Time Delay, Radial Leaded
额定电压DC 250 V
额定电压AC 250 V
额定电流 2 A
耗散功率 0.486 W
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 0.486 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial Leaded

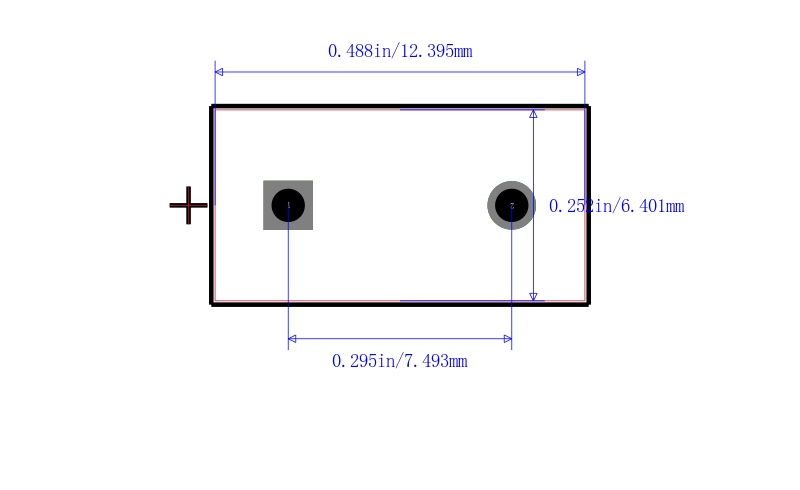

长度 12.4 mm
宽度 9.2 mm
高度 9.2 mm
脚长度 4.3 mm
封装 Radial Leaded
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
