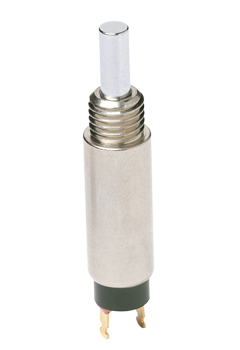

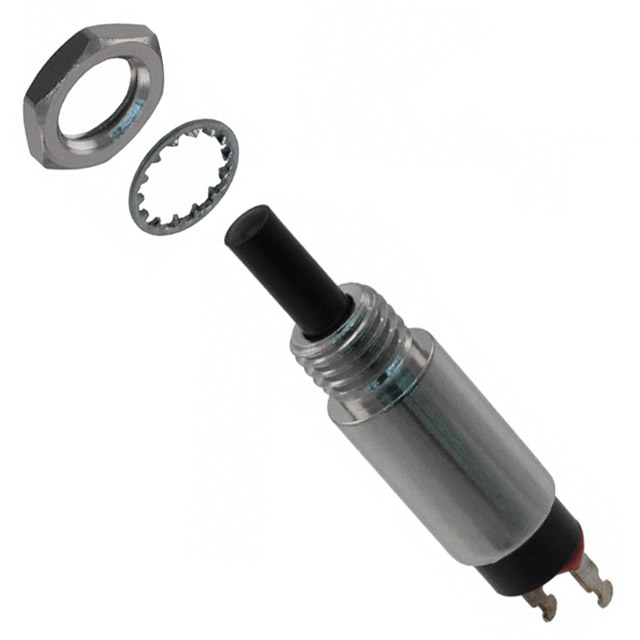

8732S1HZQE

Switch Push Button OFF Mom SPST Round Plunger 1A 125VAC 28VDC Momentary Contact Solder Lug Panel Mount

Panel Mounting Type, 1000 V RMS Min. @ Sea Level Dielectric Strength, Overtravel Pushbutton Switch

** Contact Rating:** Q contact material — 1 amp at 120 VAC or 28 VDC; B or G contact material — 0.4 VA max. at 20 VAC or VDC max. ** Case:** Diallyl phthalate UL9V-0. ** Plunger:** 8731 — 0.390 brass, nickel-plated with or without internal o-ring; 8732 — 0.390 PBT polyester, black. ** Contacts and Terminals:** Q contact material — Coin silver, silver-plated; B contact material — Gold over nickel, gold-plated; G contact material — Silver over silver, gold-plated. ** Operating Temperature:** -30°C to 65°C. ** Electrical Life:** 100,000 actuations minimum at full load.

Switch contact resistance 30 milliohms Typ..
