8532TZQE2

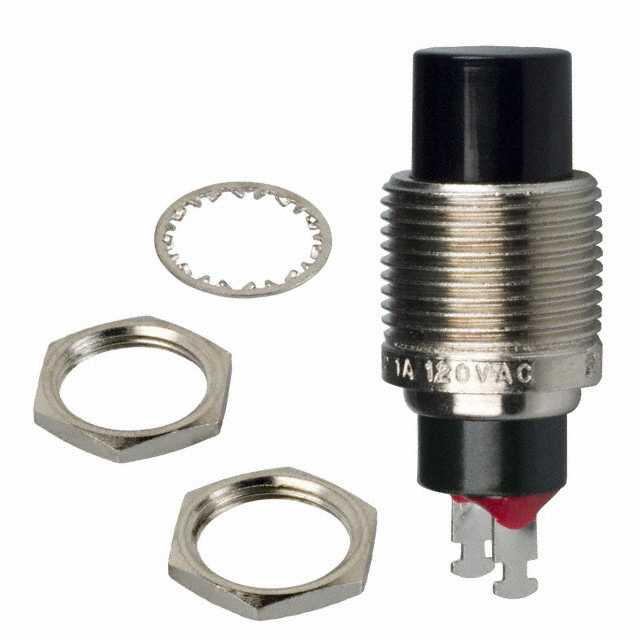

Switch Push Button OFF Mom SPST Round Plunger 1A 120VAC 28VDC Momentary Contact Solder Lug Panel Mount

Solder Lug Terminal Type, Subminiature Pushbutton Switches

** Bushing:** Brass, nickel-plated. ** Plunger:** Black phenolic or glass-filled polyester. ** Case:** Black diallyl phthalate. ** Operating Temperature:** -30°C to 65°C. ** Included Hardware:** Nut and lockwasher. ** Contacts:** Coin silver, silver-plated. ** Terminals:** Brass, silver-plated. ** 853 Models. Contact Rating:** 1 amp at 120 VAC or 28 VDC UL. ** 855 Models. Contact Rating:** 3 amps at 120 VAC or 28 VDC UL.

All models have epoxy terminal seal and are compatible with all "bottom-wash" PCB cleaning methods.
