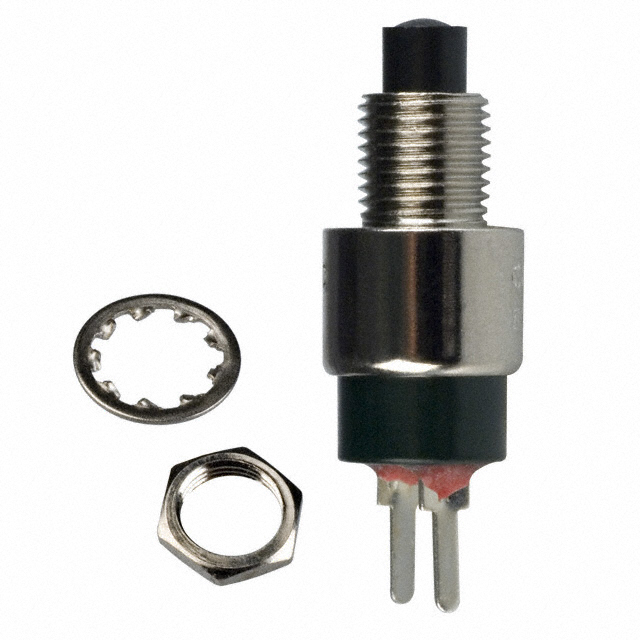

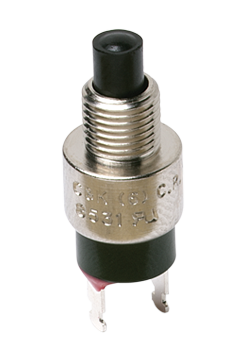

8500 系列 单刀单掷 关-瞬时 0.150" 操作杆 PC 通孔 按键开关
Never worry about turning off components or cutting off certain sections of a circuit with this push button switch from C&K Components. It has a SPST configuration. This device has a maximum current rating of 1 A @ 120VAC 28VDC. This push switch has a minimum operating temperature of -30 °C and a maximum of 65 °C. The 8532MCQE2 push switch has a PC pin termination style. The maximum AC voltage rating is 120 VAC and the maximum DC voltage rating is 28 VDC. This product is 9.53 mm long, 20.22 mm tall and 9.53 mm deep.
触点电镀 Silver
额定电压DC 28 V
额定电压AC 120 V
额定电流 1A AC, 1A DC
排数 1
触点类型 SPST
触点额定电流 1.00 A
额定电流Max 1A @120VAC, 28VDC
工作温度Max 65 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 120 V
接触电阻Max <30 mΩ
安装方式 PCB
封装 -
长度 9.53 mm
高度 20.22 mm
封装 -
触点材质 Coin Silver
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509031
