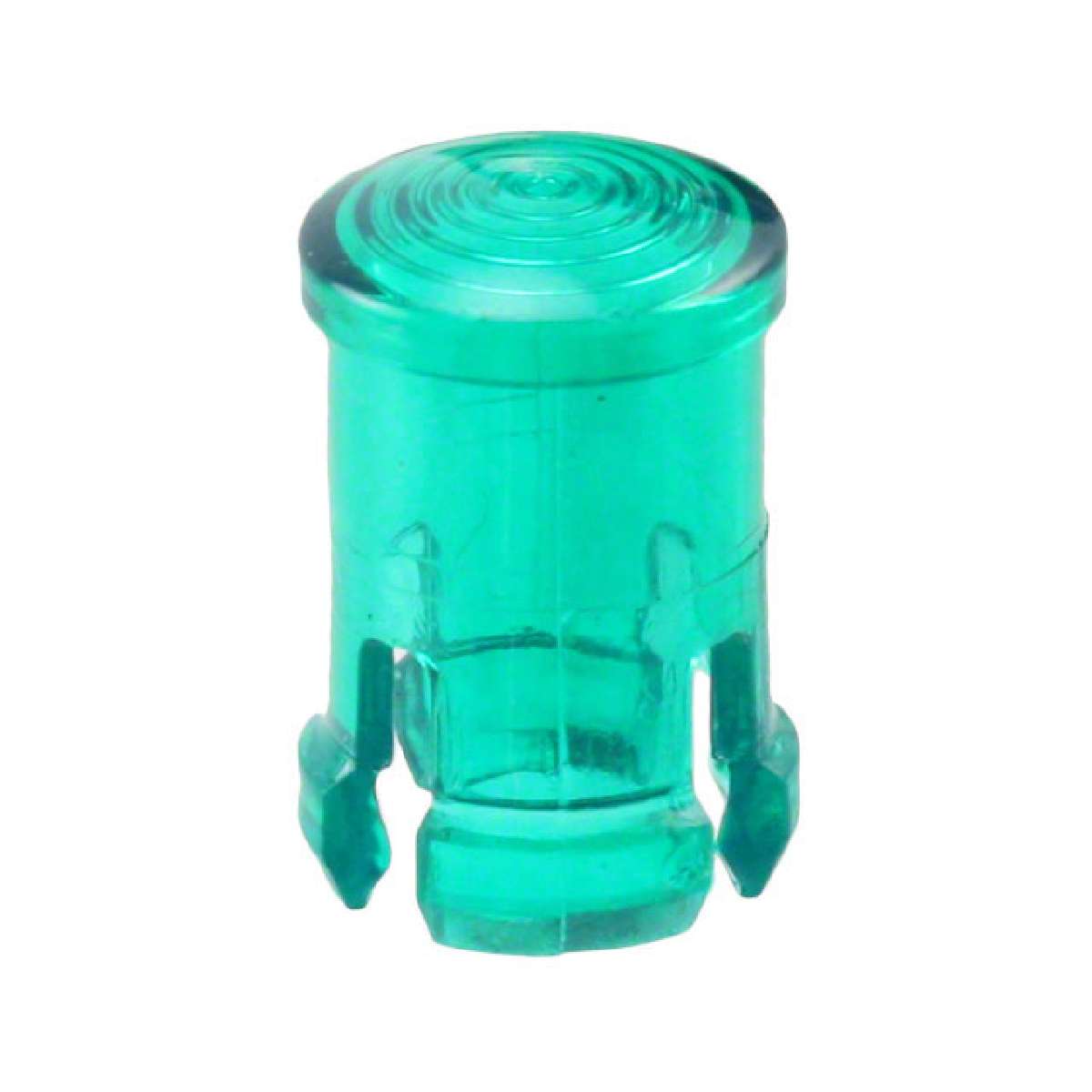

Lens Cap; LED; Round; Green; Panel .031-.062; For T-1-3/4

**Keystone LED Lens Caps - Round**

This family of LED lens caps, from Keystone, are in round configurations. They are designed for use with standard 3mm T-1 and 5mm T-1 3/4 through-hole LEDs with both diffused and non-diffused lenses. installlation is made easy by snap-in mounting through the panel. The LEDs can then be pushed in by hand, placing them into the cap using light pressure. It is then held securely in place due to the lens cap design. The round lens caps are ideal for protecting the LED against any physical damage, thus potentially improving the life time of the LED in harsher environments. The cap also guards the LED from any electrostatic diskharge ESD of up to 16KV. Available in a variety of Color options, including clear, the round LED lens caps are made from a polycarbonate material. The Colored caps are ideal for providing high contrast and visibility.

8669中文资料参数规格
技术参数

视角 180°

额定电压 1.4 V

封装参数

封装 062

外形尺寸

高度 0.43 mm

直径 7.11 mm

封装 062

物理参数

颜色 Green

材质 Polycarbonate

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买8669
型号: 8669
制造商: Keystone Electronics
描述:Lens Cap; LED; Round; Green; Panel .031-.062; For T-1-3/4
