按钮开关 1A 120VAC 28VDC OnOn SPDT Sldr Lug

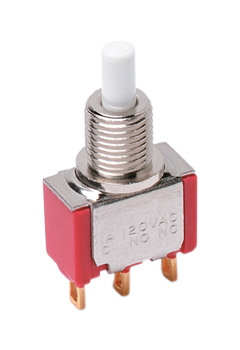

Quickly reset and disrupt processes by mechanically pressing this push button switch from C&K Components. This device has a maximum current rating of 1 A @ 120VAC 28VDC. It has a SPDT configuration. This push switch has an operating temperature range of -30 °C to 75 °C. The 8121J81ZGE11 push switch has a solder lug termination style. The maximum AC voltage rating is 120 VAC and the maximum DC voltage rating is 28 VDC. This product is 19.43 mm long, 25.32 mm tall and 15.62 mm deep.
额定电压DC 28 V
额定电压AC 120 V
额定电流 1A AC, 1A DC
排数 1
额定电流Max 1 A
工作温度Max 75 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 120 V
接触电阻Max <50 mΩ
安装方式 Solder Lug, Panel, Snap-In
封装 -
长度 12.7 mm
高度 25.32 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 75℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509031
