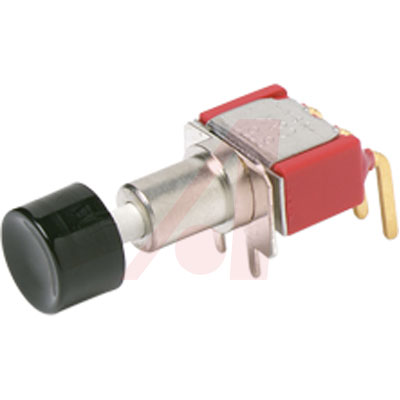

8060 系列 单刀双掷 背面安装 焊片 圆形按钮 黑色 帽 按键开关
**Features:**
• Epoxy terminal seal-compatible with bottom wash cleaning
• Available with LED
• Long travel
**Typical Applications:**
• Telecommunications & networking equipment
• Computers & peripherals
• Instrumentation
立创商城:
8168SHZGE2
贸泽:
Pushbutton Switches ON-MOM SPDT SLDR
艾睿:
Switch Push Button ON Mom SPDT Round Plunger 6A 250VAC 28VDC 0.4VA Momentary Contact Solder Lug Panel Mount Bulk
Allied Electronics:
Switch, Pushbtn; SPDT; On On; 6A 120VAC; Solder Lugs; Panel mnt
安富利:
Switch Push Button ON Mom SPDT Round Plunger 6A 250VAC 28VDC 0.4VA Momentary Contact Solder Lug Panel Mount
Chip1Stop:
Switch Push Button ON Mom SPDT Round Plunger 6A 250VAC 28VDC 0.4VA Momentary Contact Solder Lug Panel Mount
Verical:
Switch Push Button ON Mom SPDT Round Plunger 6A 250VAC 28VDC 0.4VA Momentary Contact Panel Mount Solder Lug Bulk
Newark:
# C & K COMPONENTS 8168SHZGE2 Pushbutton Switch, On-On, SPDT, 120 V, 28 V, 6 A, Solder
MASTER:
Alternate Action and Momentary Pushbutton Switches
Electro Sonic:
Alternate Action and Momentary Pushbutton Switches
触点电镀 Gold
额定电压DC 28 V
额定电压AC 120 V
额定电流 6 A
排数 1
触点类型 SPDT
触点额定电流 6.00 A
额定电流Max 6A @120VAC, 28VDC
工作温度Max 65 ℃
工作温度Min -30 ℃
额定电压 120 VAC
额定电压DC Max 28 V
额定电压AC Max 250 V
接触电阻Max <20 mΩ
安装方式 Through Hole
封装 -
长度 12.7 mm
高度 29.46 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 65℃
产品生命周期 50000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509035
