8670概述

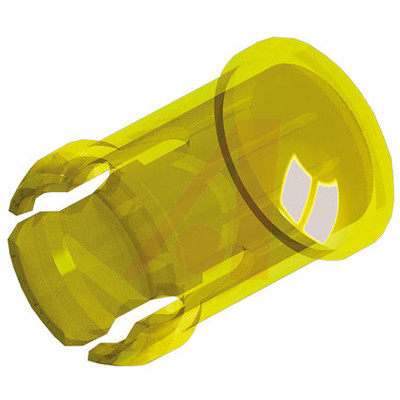

Lens Cap; LED; Round; Yellow; Panel .031-.062; For T-1-3/4

**Keystone LED Lens Caps - Round**

This family of LED lens caps, from Keystone, are in round configurations. They are designed for use with standard 3mm T-1 and 5mm T-1 3/4 through-hole LEDs with both diffused and non-diffused lenses. installlation is made easy by snap-in mounting through the panel. The LEDs can then be pushed in by hand, placing them into the cap using light pressure. It is then held securely in place due to the lens cap design. The round lens caps are ideal for protecting the LED against any physical damage, thus potentially improving the life time of the LED in harsher environments. The cap also guards the LED from any electrostatic diskharge ESD of up to 16KV. Available in a variety of Color options, including clear, the round LED lens caps are made from a polycarbonate material. The Colored caps are ideal for providing high contrast and visibility.

8670中文资料参数规格
技术参数

视角 180°

封装参数

封装 062

外形尺寸

高度 0.43 mm

直径 7.11 mm

封装 062

物理参数

颜色 Yellow

材质 Polycarbonate PC

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买8670
型号: 8670
制造商: Keystone Electronics
描述:Lens Cap; LED; Round; Yellow; Panel .031-.062; For T-1-3/4
