按钮开关 SPDT ONON 1A SOLDR

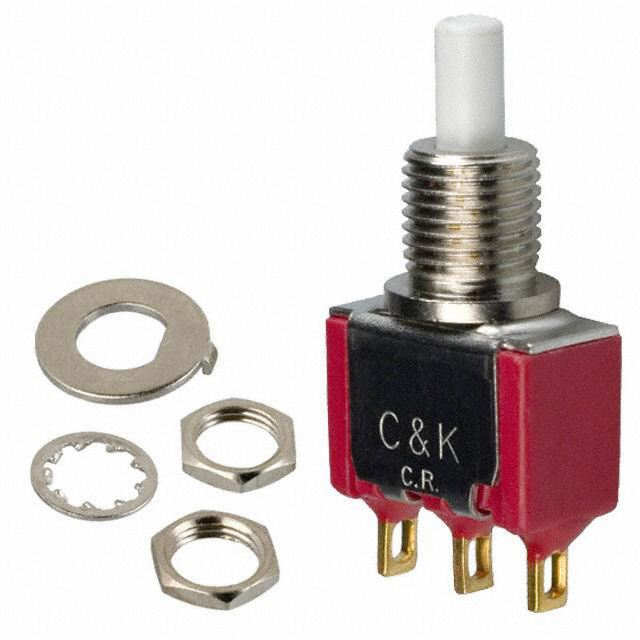

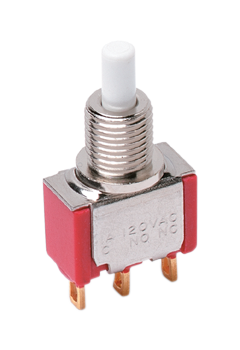

Easily reset the current state or mode using this push button switch manufactured from C&K Components. This device has a maximum current rating of 1 A @ 120VAC 28VDC. It has a SPDT configuration. This push switch has an operating temperature range of -30 °C to 75 °C. The 8121SDZGE push switch has a solder lug termination style. This product is 12.7 mm long, 27.66 mm tall and 6.86 mm deep. The maximum AC voltage rating is 120 VAC and the maximum DC voltage rating is 28 VDC.
触点电镀 Gold
额定电压DC 28 V
额定电压AC 120 V
额定电流 1A AC, 1A DC
绝缘电阻 1000000000 Ω
排数 1
触点类型 SPDT
接触电阻 0.1 mΩ
触点额定电流 1.00 A
额定电流Max 1A @120VAC, 28VDC
工作温度Max 75 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 120 V
接触电阻Max <50 mΩ
安装方式 Lug, Snap-In
封装 -
长度 12.7 mm
高度 27.66 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 75℃
产品生命周期 60000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509031
