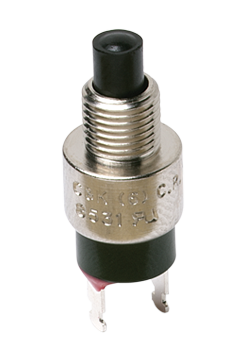

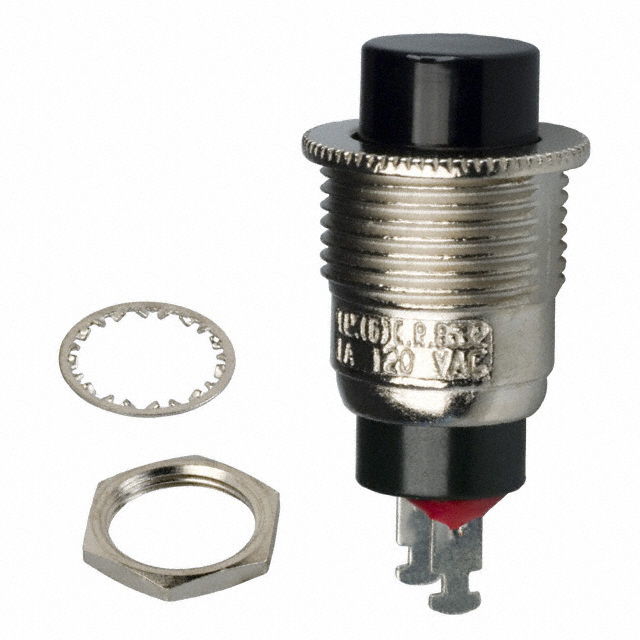

8500 系列 微型 单刀单掷 关-瞬时 面板安装 焊片 按键开关
C&K 8500 Series, 30 Milliohms Contact Resistance, Subminiature Pushbutton Switches
* Ratings up to 3 AMPS
* Reliable contact design
立创商城:
8532T1ZQE2
贸泽:
Pushbutton Switches C & K PUSH OFF MOM
艾睿:
Switch Push Button OFF Mom SPST Round Plunger 1A 120VAC 28VDC Momentary Contact Solder Lug Panel Mount Bulk
Allied Electronics:
Switch, SubMiniature Pushbutton, SPST, OFF-MOM, Solder TerminalS, BLK FRAME
Chip1Stop:
Switch Push Button OFF Mom SPST Round Plunger 1A 120VAC 28VDC Momentary Contact Solder Lug Panel Mount
Verical:
Switch Push Button OFF Mom SPST Round Plunger 1A 120VAC 28VDC Momentary Contact Panel Mount Solder Lug Bulk
Newark:
# C & K COMPONENTS 8532T1ZQE2 Pushbutton Switch,STRAIGHT,SPST,OFF-ON,SOLDER Terminal
MASTER:
Subminiature Pushbutton Switches
Electro Sonic:
Subminiature Pushbutton Switches
触点电镀 Silver
额定电压DC 28 V
额定电压AC 120 V
额定电流 1 A
绝缘电阻 1 GΩ
排数 1
触点类型 SPST
针脚数 2
接触电阻 30.0 mΩ
触点额定电流 1.00 A
额定电流Max 1A @120VAC, 28VDC
工作温度Max 65 ℃
工作温度Min -30 ℃
额定电压 120 VAC
额定电压DC Max 28 V
额定电压AC Max 120 V
接触电阻Max <30 mΩ
安装方式 Through Hole
封装 -
长度 9.53 mm
高度 26.08 mm
直径 9.52 mm
封装 -
触点材质 Silver
工作温度 -30℃ ~ 65℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509031
