8500 系列 微小型 单刀单掷 关-瞬时 通孔 按键开关

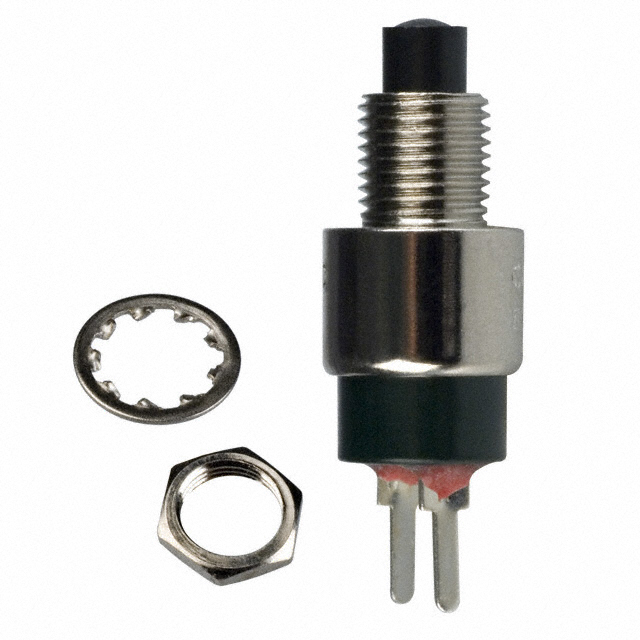

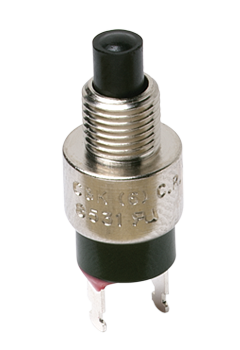

Turn on and off portions of your circuit design with the aid of this push button switch manufactured from C&K Components. It has a SPST configuration. This device has a maximum current rating of 1 A @ 120VAC 28VDC. This push switch has a minimum operating temperature of -30 °C and a maximum of 65 °C. The 8531SCQE2 push switch has a PC pin termination style. This product is 9.53 mm long, 24.6 mm tall and 9.53 mm deep. The maximum AC voltage rating is 120 VAC and the maximum DC voltage rating is 28 VDC.
触点电镀 Silver
额定电压DC 28 V
额定电压AC 120 V
额定电流 1A AC, 1A DC
排数 1
触点类型 SPST
触点额定电流 1.00 A
额定电流Max 1A @120VAC, 28VDC
工作温度Max 65 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 120 V
接触电阻Max <30 mΩ
安装方式 Through Hole
封装 -
长度 9.53 mm
高度 24.6 mm
封装 -
触点材质 Coin Silver
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509031
