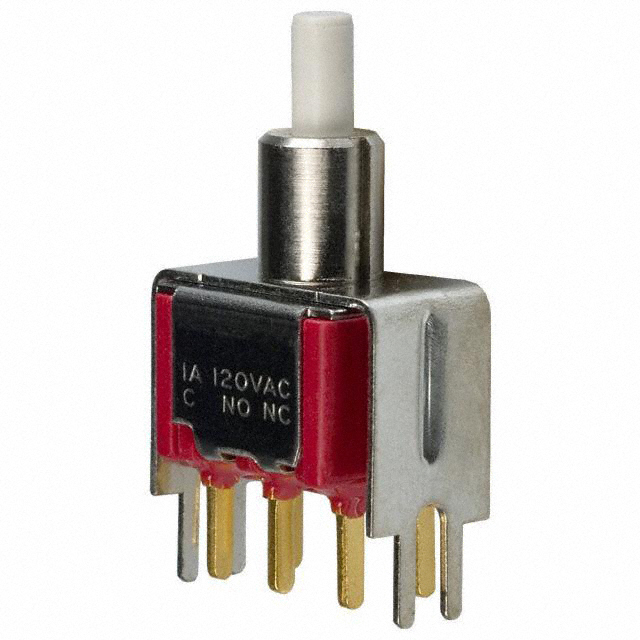

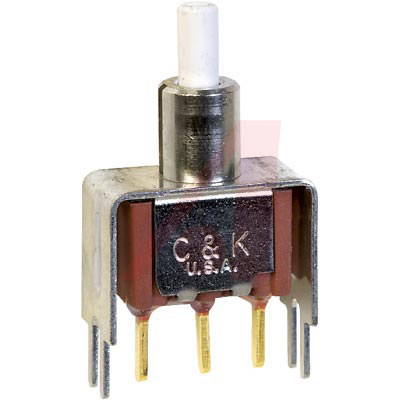

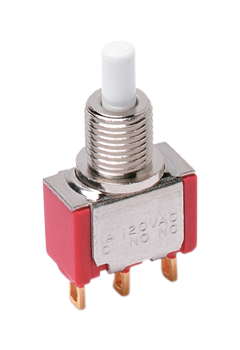

8121SD9V3GE

8020 系列 微动 单刀双掷 开-瞬时 V 型支架 按键开关

Snap-Acting Momentary Pushbutton Switches, 1000 V RMS Min. Dielectric Strength

** Bushings:** Brass, nickel-plated. ** Plungers:** Glass-filled nylon. ** Cap:** Black nylon. ** Case:** Red diallyl phthalate. ** Operating Temperature:** -30°C to 65°C.

**

8X25 Models. Contact Rating:

.

* 0.4 VA max. at 20 VAC or VDC max. ** Contacts and Terminals:** Brass with gold-plate over nickel-plate.

**

8X21 Models. Contact Rating:

.

* 1 A at 120 VAC or 28 VDC, or 0.4 VA max. at 20 VAC or VDC max. ** Common Contact and Terminals:** Brass with gold-plate over nickel-plate. ** Normally Open and Normally Closed Contacts:** Coin silver with gold-plate over nickel-plate.

**

8X6 Models. Contact Rating:

.

* 0.4 VA max. at 20 VAC or VDC max. ** Contacts and Terminals:** Brass with gold-plate over nickel-plate.

Pushbutton switches has its application for instrumentation, computer peripherals and telecommunications equipment.
