8060 系列 微型 单刀双掷 开-瞬时 通孔 按键开关

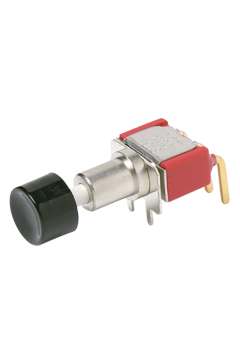

Ideal for quick switching situations this push button switch manufactured from C&K Components is a must. It has a SPDT configuration. This device has a maximum current rating of 6 A @ 120VAC 28VDC. This push switch has an operating temperature range of -30 °C to 65 °C. The 8168LHCQE2 push switch has a PC pin termination style. This product is 12.7 mm long, 36.26 mm tall and 10.03 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 28 VDC.
额定电压DC 28 V
额定电压AC 120 V
额定电流 6A AC, 6A DC
排数 1
额定电流Max 6A @120VAC, 28VDC
工作温度Max 65 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 250 V
接触电阻Max <20 mΩ
安装方式 Through Hole
封装 -
长度 12.7 mm
宽度 6.86 mm
高度 36.26 mm
封装 -
触点材质 Coin Silver
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509035
