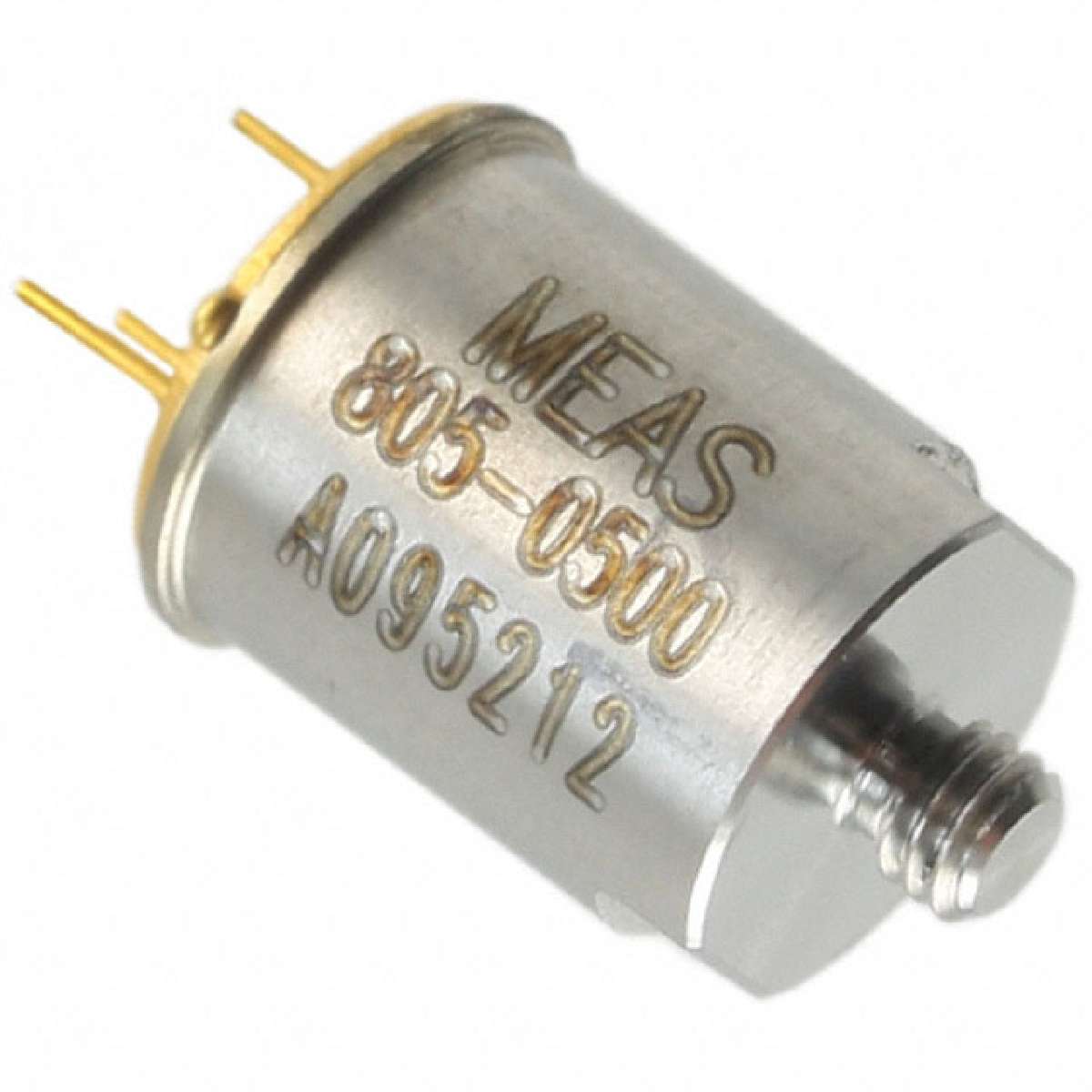

805-0500-01

805-0500-01图片1
805-0500-01图片2
805-0500-01图片3
805-0500-01图片4
805-0500-01图片5
805-0500-01概述

Accelerometer ±500g 24V 10mV/g 3Pin TO-5

Easily include orientation detection and acceleration parameter measurements in your electronic device by implementing this accelerometer from .


艾睿:
Accelerometer, 2-Wire Iepe Interface Low-Cost, Embedded Applications Wide Bandwidth To 15Khz


安富利:
Accelerometer Single ±500g 18V to 30V 10mV/g 3-Pin TO-5


805-0500-01中文资料参数规格
技术参数

带宽 0.3Hz ~ 12kHz

工作温度Max 100 ℃

工作温度Min -40 ℃

电源电压 18V ~ 30V

电源电压Max 30 VDC

电源电压Min 18 VDC

封装参数

安装方式 Through Hole

引脚数 3

封装 TO-205

外形尺寸

高度 14.47 mm

封装 TO-205

物理参数

工作温度 -40℃ ~ 100℃ TA

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买805-0500-01
型号: 805-0500-01
描述:Accelerometer ±500g 24V 10mV/g 3Pin TO-5
