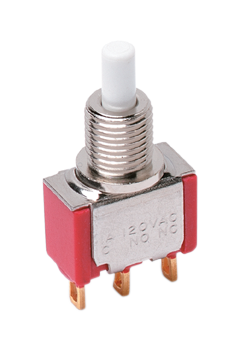

Switch Push Button ON Mom SPDT Round Plunger 1A 120VAC 28VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole
Ideal for quick switching situations this push button switch manufactured from C&K Components is a must. This device has a maximum current rating of 1 A @ 120VAC 28VDC. It has a SPDT configuration. This push switch has a minimum operating temperature of -30 °C and a maximum of 75 °C. The 8121SYAV2GE push switch has a PC pin termination style. This product is 6.86 mm long, 12.7 mm tall and 34.34 mm deep. The maximum AC voltage rating is 120 VAC and the maximum DC voltage rating is 28 VDC.
额定电压DC 28 V
额定电压AC 120 V
额定电流 1 A
排数 1
额定功率 0.4 VA
额定电流Max 1A @120VAC, 28VDC
工作温度Max 75 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 120 V
接触电阻Max <50 mΩ
安装方式 PC Board, Panel, Vertical
封装 -
长度 6.86 mm
高度 12.7 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 75℃
包装方式 Bulk
RoHS标准 RoHS Compliant
ECCN代码 EAR99
HTS代码 8536509031
