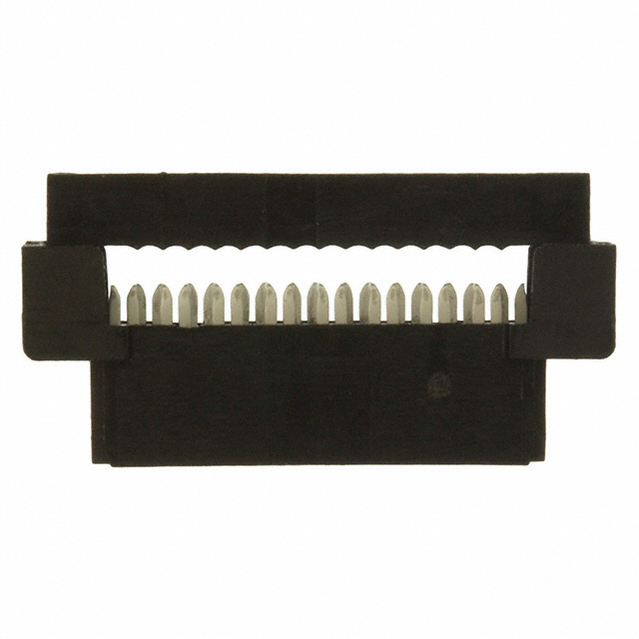

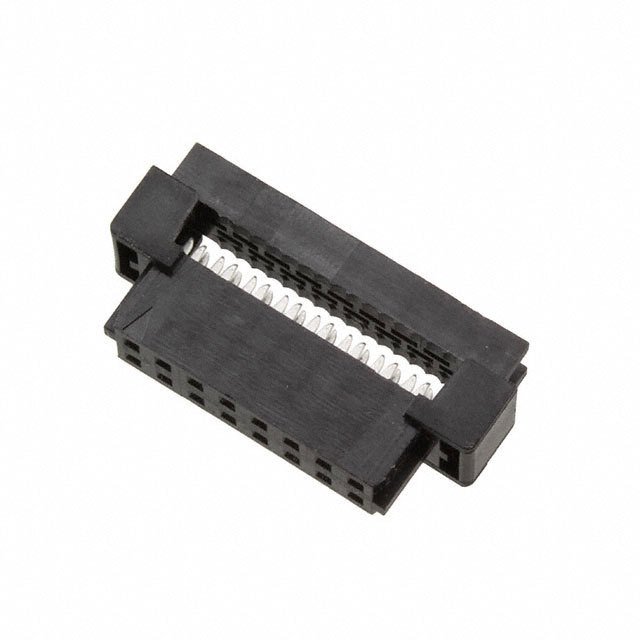

2.00毫米（ 0.079 ）间距的Milli-电网™线对板插座，双排， IDT ，无铅， 16电路， 0.38毫米（ 0.015 ），金（Au ）选择性电镀 2.00mm .079 Pitch Milli-Grid™ Cable-to-Board Receptacle, Dual Row, IDT, Lead-free, 16 Circuits, 0.38mm .015 Gold Au Selective Plating
Milli-Grid™ Connector System
A high-density connector system based on a 2.00 by 2.00mm grid pattern that offers complete design flexibility for wire-to-board, board-to-board and cable-to-board applications. Available in gold or tin-plated, ’s Milli-Grid™ family includes crimp terminals, housings, headers and receptacles. Receptacles are available in single- and dual-row versions with a variety of mating and termination options. Headers are available in shrouded and unshrouded styles.
触点数 16
极性 Female
线规 28 AWG
触点电镀 Gold
额定电流 1 A
绝缘电阻 5000 MΩ
排数 2
灼热丝测试标准 Non-Compliant
无卤素状态 Not Low Halogen
电路数 16
针脚数 16
拔插次数 100
额定电流Max 1A/触头
工作温度Max 85 ℃
工作温度Min -20 ℃
额定电压Max 125 V
额定电压 125 V
接触电阻Max 30 mΩ
引脚间距 2.00 mm
长度 22.65 mm
宽度 5.55 mm
高度 11.4 mm
引脚间距 2.00 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
