860007 100M

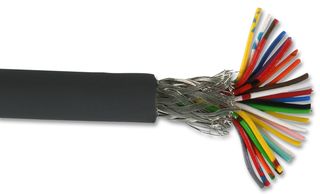

PRO POWER  860007 100M  多芯屏蔽电缆, 黑色, 36 芯, 0.22 mm², 328 ft, 100 m

The 7-2-xxA and 7-2-xxC series from Pro Power are multiconductor cables. These are approved by DEF STAN 61-12 Part 4 unscreened Type 7-2-xxA and DEF STAN 61-12 Part 4 screened Type 7-2-xxC standards. These cables are suitable for interconnections between instruments and electrical equipment for applications such as data transmission and process control.

.

7/0.2mm tinned annealed copper conductor

.

Type 2 PVC insulation confirms to BS 7655 standard

.

Polyester binder tape

.

Tinned annealed copper wire braid screen for 7-2-xxC series

.

Black colour Type 6 PVC sheath confirms to BS 7655 standard

.

0.3mm insulation thickness

.

Maximum operating temperature of 70°C

.

Current rating of 1A/core

.

Maximum working voltage is 440V

.

Available in 25m and 100m reel lengths
