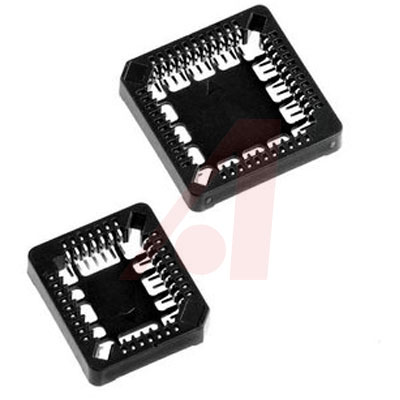

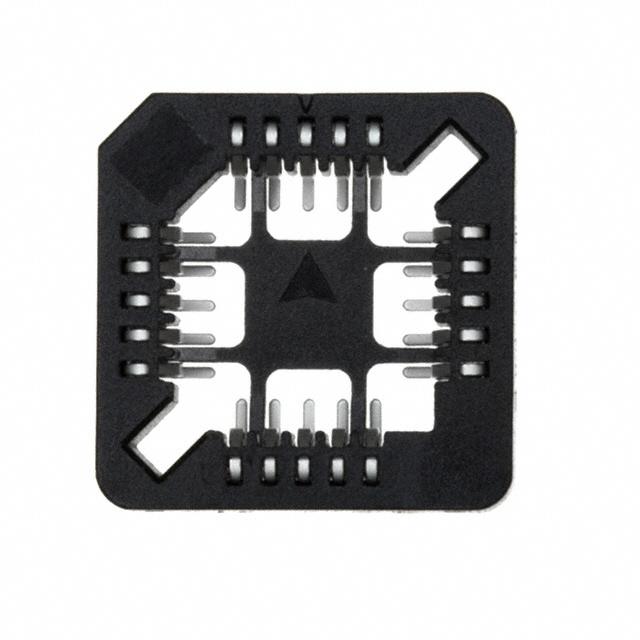

3M 8420-21B1-RK-TP 芯片和元件插座, 8400系列, PLCC插座, 20 触点, 1.27 mm, 镀锡触芯
The is a 20-way surface mount Chip Carrier Socket with tin-plated copper contacts, compatible with automated loading equipment. This 8400 series socket is glass filled polyphenylene sulfide PPS insulated, accepts chip carriers conforming to JEDEC outline MO-047 for square and MO-052 for rectangular, open top design allows unrestricted air flow. High temperature insulator compatible with IR reflow and wave soldering.
触点数 20
极性 Female
触点电镀 Tin, Tin over Nickel
排数 4
易燃性等级 UL 94 V-0
针脚数 20
接触电阻 30 mΩ
安装角度 180 °
工作温度Max 125 ℃
工作温度Min -55 ℃
接触电阻Max 15 mΩ
安装方式 Surface Mount
引脚数 20
引脚间距 1.27 mm
长度 15.65 mm
宽度 15.65 mm
高度 4.6 mm
引脚间距 1.27 mm
颜色 Black
触点材质 Copper
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tube
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
