82862204概述

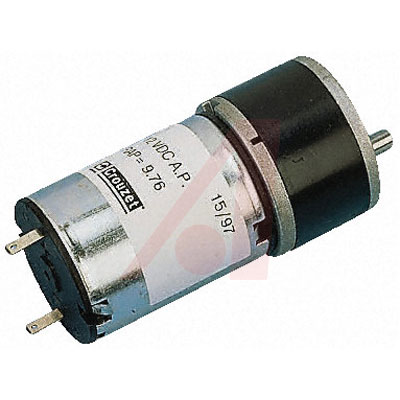

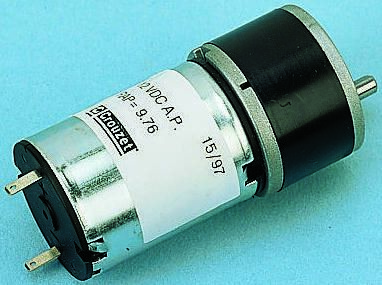

Geared motors 3 W, 0.5 NmRange of geared motors with RPT5 type direct current motors. Connected via 2.8 mm axial terminals. Max. admissible torque: | 0.5 Nm ---|--- Max. power output: | 3.9 W Nominal power output: | 3 W Speed | \- no load: 5000 rpm \- base speed: 4300 rpm Starting torque: | 30 mNm Sintered bronze bearings | ### Crouzet 齿轮传动电动机
The is a DC Geared Motor with sintered metal gears and brushes. It features 0.5Nm mechanical rating of gearbox with output shaft stalled and options with magnetic encoder.
- .
- 24VDC Voltage rating
- .
- 1daN Axial load static
- .
- 8daN Radial load static
- .
- 3.9W Maximum output power
- .
- 50°C Gearbox case temperature rise
在线购买82862204
型号： 82862204
制造商：
Crouzet
高诺斯
描述：Geared motors 3 W, 0.5 Nm Range of geared motors with RPT5 type direct current motors. Connected via 2.8 mm axial terminals. Max. admissible torque: | 0.5 Nm ---|--- Max. power output: | 3.9 W Nominal power output: | 3 W Speed | \- no load: 5000 rpm \- base speed: 4300 rpm Starting torque: | 30 mNm Sintered bronze bearings | ### Crouzet 齿轮传动电动机
