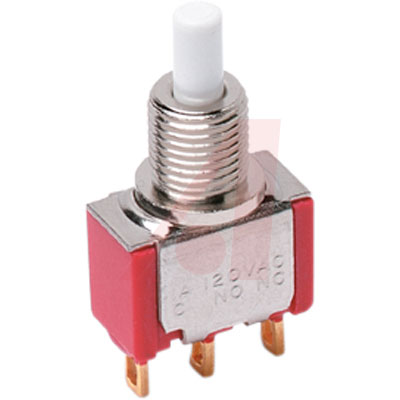

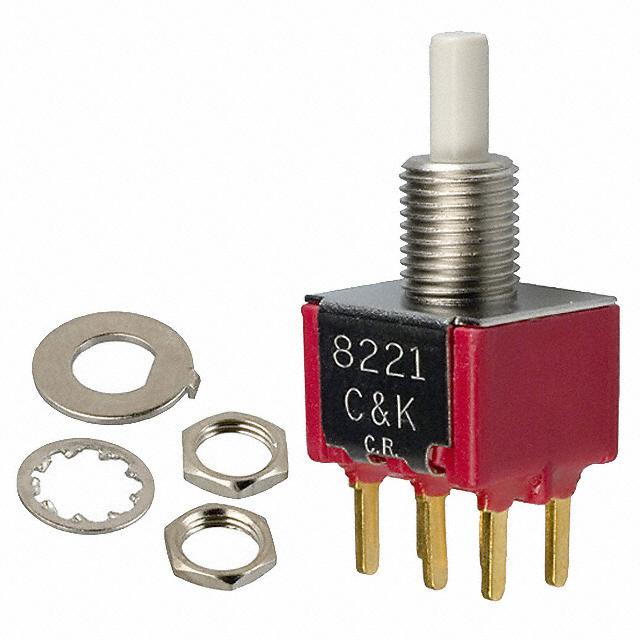

8020 系列 双刀双掷 1 A 120 VAC 28 VDC 圆形 柱塞 按键开关
**Features:**
* Epoxy terminal seal-compatible with bottom wash cleaning
* Wide variety of termination options
* Positive tactile feel
**Typical Applications:**
* Telecommunications equipment
* Computer peripherals
* Instrumentation
立创商城:
8221SDCGE
艾睿:
Switch Push Button ON Mom DPDT Round Plunger 1A 120VAC 28VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole Bulk
Allied Electronics:
Switch, Pushbutton, DPDT, 1 Amp, PC Pins, Normally Closed, Momentary
安富利:
Switch Push Button ON Mom DPDT Round Plunger 1A 120VAC 28VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole
Chip1Stop:
Switch Push Button ON Mom DPDT Round Plunger 1A 120VAC 28VDC 0.4VA Momentary Contact PC Pins Panel Mount/Throu
Verical:
Switch Push Button ON Mom DPDT Round Plunger 1A 120VAC 28VDC 0.4VA Momentary Contact Panel Mount/Through Hole PC Pins Bulk
Newark:
# C & K COMPONENTS 8221SDCGE Pushbutton Switch,STRAIGHT,DPDT,ON-ON,PC TAIL Terminal,PCB Hole Count:6
MASTER:
Snap-acting Momentary Pushbutton Switches
Electro Sonic:
Snap-acting Momentary Pushbutton Switches
额定电压DC 28 V
额定电压AC 120 V
额定电流 1 A
绝缘电阻 1000 MΩ
排数 2
额定电流Max 1 A
工作温度Max 75 ℃
工作温度Min -30 ℃
额定电压 120 VAC
额定电压DC Max 28 V
额定电压AC Max 120 V
接触电阻Max <50 mΩ
安装方式 Through Hole
封装 -
长度 12.7 mm
高度 25.27 mm
封装 -
触点材质 Coin Silver
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509031
