HONEYWELL 8LS152 限位开关
**LS Medium Duty Limit Switches**
The LS limit switch series from has a long record of successful performance in industrial applications. The LS miicro switch fits in many places too small for any other dully adjustable limit switch. The 200LS switches are the original plug-in concept for reducing downtime by making changeover simple and fast.
立创商城:
8LS152
艾睿:

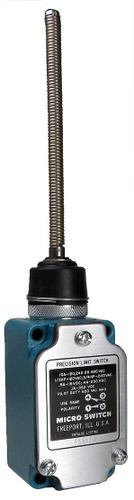

The enclosed 8LS152 limit switch, developed by Honeywell, can provide your project motion controlled data, as the switch itself is activated through movement or the presence of another object. This device has a maximum current rating of 0.8 A @ 115VDC. It has a SPDT configuration. 8LS152 is housed in zinc die cast. This limit switch has a minimum operating temperature of -29 °C and a maximum of 71 °C. The 8LS152 limit switch has a conduit termination style. The maximum DC voltage rating is 550 VDC. This product is 39.88 mm long, 204.47 mm tall and 40.64 mm deep.
Allied Electronics:
Limit Switch; Wobble Coil Spring; 1NC/1NO; Snap Action; Compact; Non Plug-In
Chip1Stop:
Switch Limit N.O./N.C. SPDT Coil Spring Conduit 0.8A 550VDC 1.39N Rotary Screw Mount
Verical:
Switch Limit N.O./N.C. SPDT Coil Spring Screw Mount 0.8A 550VDC 1.39N Rotary Conduit Automotive
Newark:
Limit Switch, Wobble Coil Spring, SPDT-1NO, SPDT-NC, 10 A, 480 V, 5 ozf
MASTER:
MICRO SWITCH™ General Purpose Limit Switches: LS Series, Epoxy-Coated Zinc Housing, Non Plug-in Body Style, Wobble Actuator, Ø 4,8 mm x 141 mm [0.19 in x 5.6 in] SST Coil Spring, 1NC 1NO Single Pole Double Throw SPDT Snap Action, Double Break, 10 A 120,
Online Components:
Switch Limit N.O./N.C. SPDT Coil Spring Conduit 0.8A 550VDC 1.39N Rotary Screw Mount
Electro Sonic:
MICRO SWITCH™ General Purpose Limit Switches: LS Series, Epoxy-Coated Zinc Housing, Non Plug-in Body Style, Wobble Actuator, Ø 4,8 mm ...
