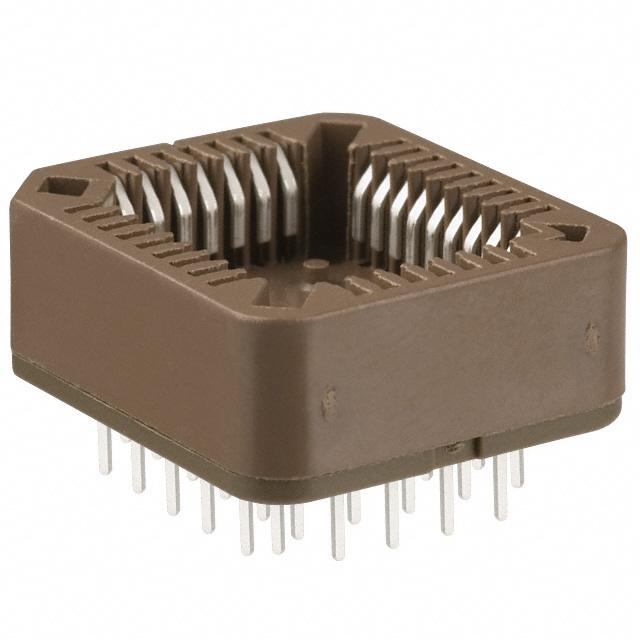

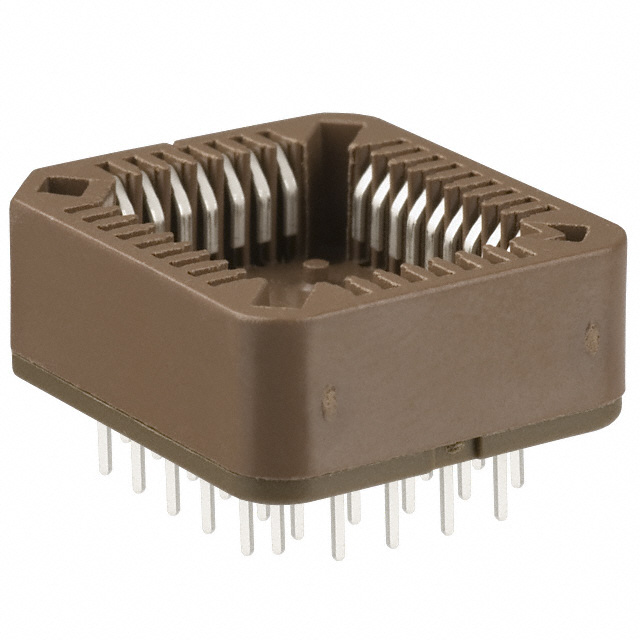

8432-11B1-RK-TP

3M  8432-11B1-RK-TP  芯片和元件插座, 8400系列, PLCC插座, 32 触点, 2.54 mm, 镀锡触芯

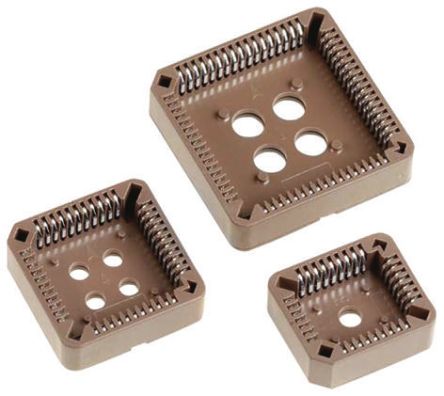

8400 系列薄型，4 排 PLCC 插座

8400 系列 4 排印刷电路板 PLCC 插座，可接受符合 JEDEC 封装外形 MO-047 方形和 MO-052 矩形的 PLCC。 这些 8400 系列 PLCC 插座具有薄型设计、开放式顶部（用于气流畅通）且具有模制插槽，便于于设备拔插。 这些 8400 PLCC 插座的高温度绝缘体使其可与 IR 回流和波焊兼容，并且它们还与自动加载设备兼容。

得捷:
CONN SOCKET PLCC 32POS TIN

欧时:
3M 8400 系列 32 针 1.27mm 节距 通孔 母 PLCC 针座 8432-11B1-RK-TP, 锡镀镍 电镀触点

e络盟:
芯片和元件插座, 32 触点, PLCC插座, 2.54 mm, 8400系列, 铜合金

艾睿:
Expand your design options with this plcc socket 8432-11B1-RK-TP connector socket from 3M that will give you a strong and tight connection for multiples wires on a cable. This SKT connector&s;s 32 contacts that are made out of copper alloy and plated with tin over nickel. It has a socket type gender. Its pitch is 2.54 mm. It has a straight body orientation. 8432-11B1-RK-TP is housed in polybutylene terephthalate. This connector socket has an operating temperature of -40 to 105 °C. This product is 18.05 mm long, 8 mm tall and 20.6 mm deep. It is insulated with polybutylene terephthalate. It uses the solder termination method.

Allied Electronics:
1.27mm Pitch Female PLCC Skt, 32Way, Through Hole, Tin over Nickel Plated Contacts

安富利:
Conn PLCC Socket SKT 32 POS 2.54mm Solder ST Thru-Hole Tube

Chip1Stop:
Conn PLCC Socket SKT 32 POS 2.54mm Solder ST Thru-Hole Each

Verical:
Conn PLCC Socket SKT 32 POS 2.54mm Solder ST Thru-Hole Box

Newark:
IC & Component Socket, 8400 Series, PLCC Socket, 32 Contacts, 2.54 mm, Tin Plated Contacts
