8432-21B1-RK-TP

3M  8432-21B1-RK-TP  芯片和元件插座, 8400系列, PLCC插座, 32 触点, 1.27 mm, 镀锡触芯

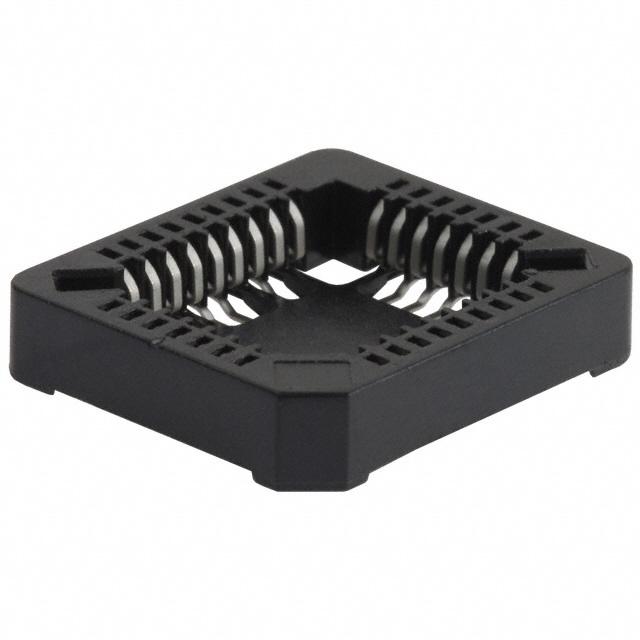

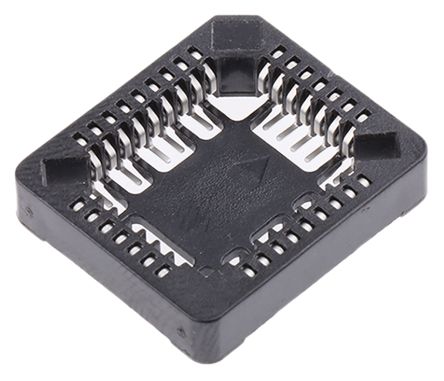

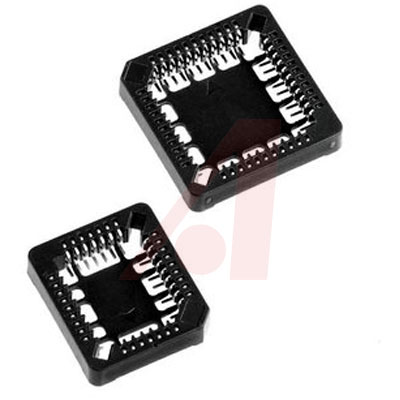

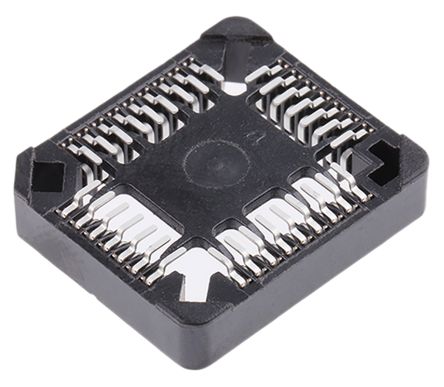

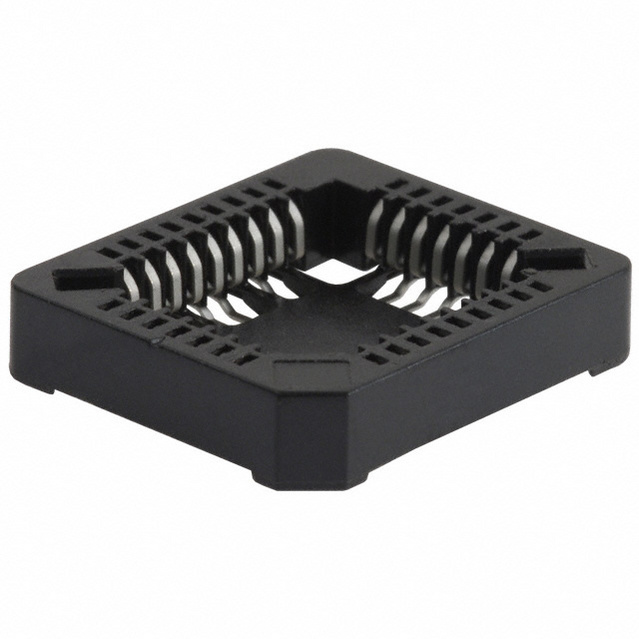

8400 系列 SMT PLCC 插座

8400 系列 SMT PLCC 插座，可接受符合 JEDEC 封装外形 MO-047（方形）和 MO-052（矩形）的 PLCC。 这些 8400 系列 SMT PLCC 插座具有薄型设计、开放式顶部（以保持气流畅通）以及模制插槽，便于拔取设备。 这些 8400 PLCC 插座的高温度绝缘体使其可与 IR 回流和波焊兼容，并且它们还与自动加载设备兼容。

部件号 84XX-21A1-RK-XX 具有定位支柱（仅限管包装）

得捷:
CONN SOCKET PLCC 32POS TIN

欧时:
3M 8400 系列 32 针 1.27mm 节距 SMT 母 PLCC 针座 8432-21B1-RK-TP, 锡镀镍 电镀触点

贸泽:
IC & Component Sockets 32P PLCC SOCKET SMT W/O LOC POSTS

e络盟:
芯片和元件插座, 32 触点, PLCC插座, 1.27 mm, 8400系列, 铜

艾睿:
Ideal for multiple wires which need to be connected this plcc socket 8432-21B1-RK-TP connector socket from 3M will exceed your needs. This SKT connector&s;s 32 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a straight body orientation. Its pitch is 1.27 mm. It has a socket type gender. 8432-21B1-RK-TP is housed in polyphenylene sulfide. It uses the solder termination method. This connector socket has an operating temperature of -40 to 105 °C. This product is 18.18 mm long, 4.6 mm tall and 20.75 mm deep. It is insulated with polyphenylene sulfide.

Allied Electronics:
1.27mm Pitch Female PLCC Socket; 32 WaySMT; Tin over Nickel Plated Contacts

Chip1Stop:
Conn PLCC Socket SKT 32 POS 1.27mm Solder ST SMD Tube

Verical:
Conn PLCC Socket SKT 32 POS 1.27mm Solder ST SMD Tube

Newark:
# 3M  8432-21B1-RK-TP  IC & Component Socket, 8400 Series, PLCC Socket, 32 Contacts, 1.27 mm, Tin Plated Contacts
