8019

8019图片1
8019图片2
8019图片3
8019图片4

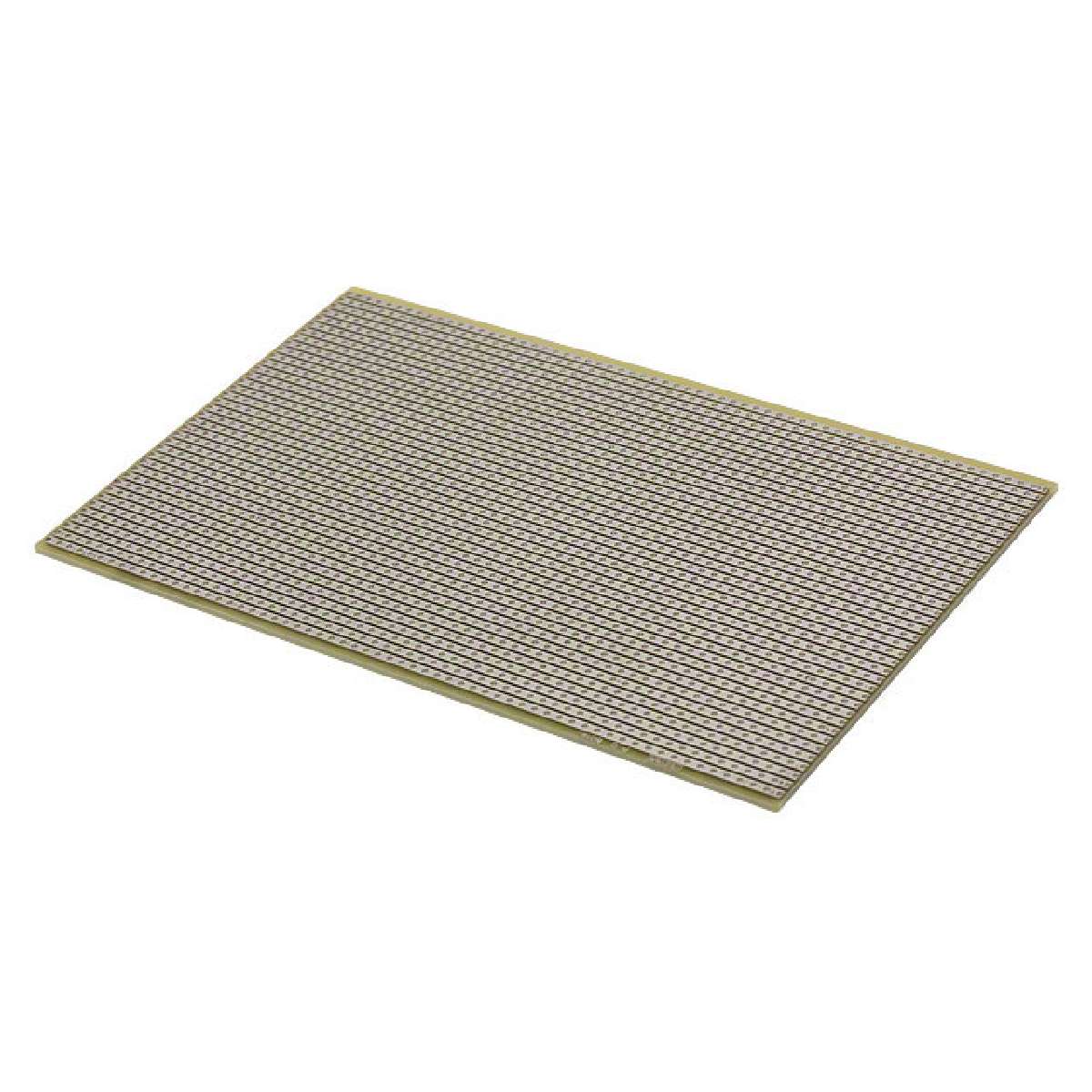

8019图片5
8019概述

VECTOR ELECTRONICS  8019  原型开发板, 3.94 x 6.30 ""

0.042 in. Hole Diameter, 0.100 mm x 0.100 mm Grid Size, Circuit Board

Circbord™ prototyping boards with printed circuitry cover a wide range of design requirements — without the expense of edge connectors. All boards have provisions for I/O connectors. Several circuit patterns are available. All bus and pad surfaces are solder coated for user convenience. Holes are 0.042" diameter, hole patterns are based on 0.1" grids. Sockets and pins, terminals, tools and accessories are available separately.

The track-long solder coated pattern on both side of the board, 0.042 " dia. holes plated-through copper are precision drilled.

8019中文资料参数规格
技术参数

易燃性等级 UL 94 V-0

外形尺寸

长度 160 mm

宽度 160 mm

高度 100 mm

厚度 1.57 mm

物理参数

材质 Epoxy Glass

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买8019
型号: 8019
制造商: Vector Electronics
描述:VECTOR ELECTRONICS  8019  原型开发板, 3.94 x 6.30 ""
