八路D型触发器与Clear OCTAL D-TYPE FLIP-FLOPS WITH CLEAR
description
These octal positive-edge-triggered flip-flops utilize TTL circuitry to implement D-type flip-flop logic with a direct-clear CLR input.
Information at the data D inputs meeting the setup-time requirements is transferred to the Q outputs on the positive-going edge of the clock CLK pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When CLK is at either the high or low level, the D input signal has no effect at the output.
The SN54ALS273 is characterized for operation over the full military temperature range of –55°C to 125°C. The SN74ALS273 is characterized for operation from 0°C to 70°C.
• Contain Eight Flip-Flops With Single-Rail Outputs
• Buffered Clock and Direct-Clear Inputs
• Individual Data Input to Each Flip-Flop
• Applications Include:
Buffer/Storage Registers
Shift Registers
Pattern Generators

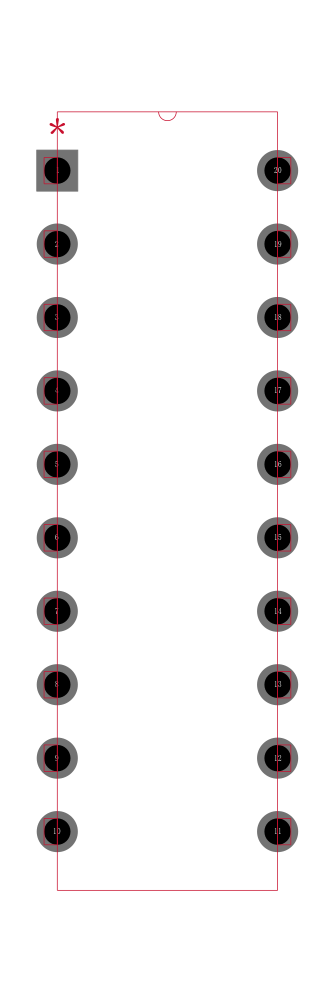

• Package Options Include Plastic
Small-Outline DW Packages, Ceramic
Chip Carriers FK, and Standard Plastic N

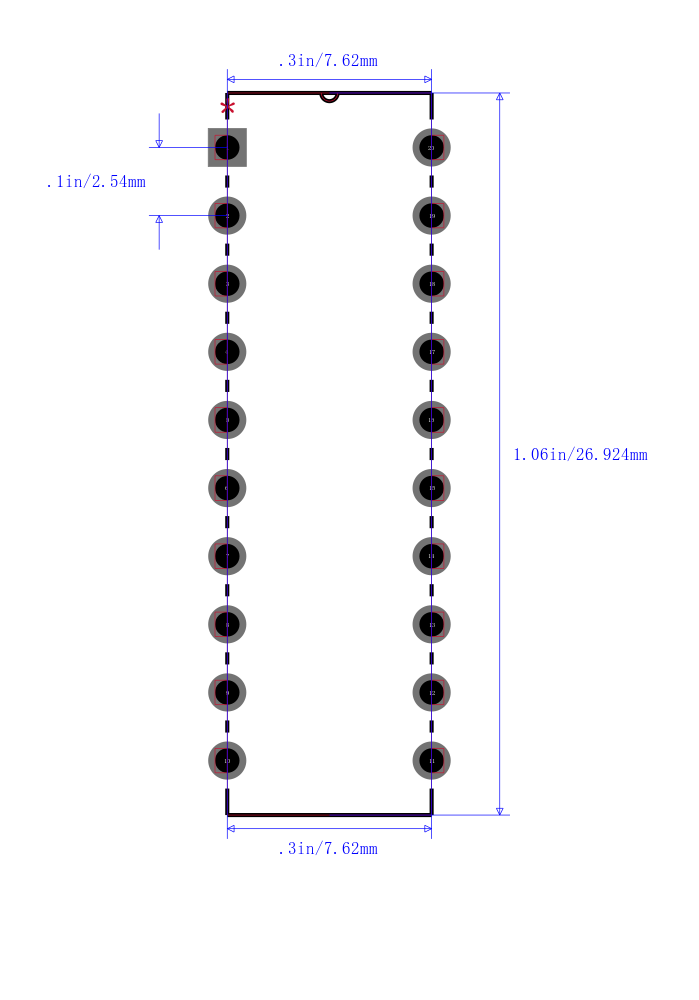

and Ceramic J 300-mil DIPs
