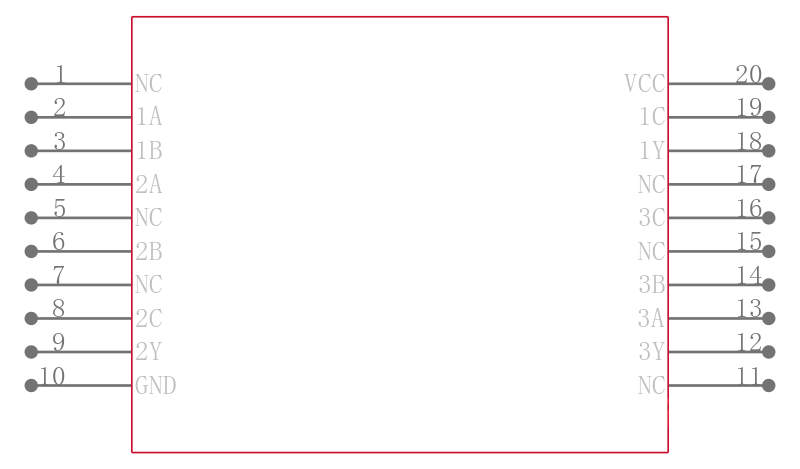

84038012A

三路 3 输入正与非门 20-LCCC -55 to 125

description/ordering information

The ’HC10 devices contain three independent 3-input NAND gates. They perform the Boolean function Y = A • B • C or Y = A + B + C in positive logic.

● Wide Operating Voltage Range of 2 V to 6 V

● Outputs Can Drive Up To 10 LSTTL Loads

● Low Power Consumption, 20-µA Max ICC

● Typical tpd = 9 ns

● ±4-mA Output Drive at 5 V

● Low Input Current of 1 µA Max

艾睿:
NAND Gate 3-Element 3-IN CMOS 20-Pin CLLCC Tube

安富利:
NAND Gate 3-Element 3-IN CMOS 20-Pin LCCC Tube

Chip1Stop:
NAND Gate 3-Element 3-IN CMOS 20-Pin CLLCC Tube
